CPV15
Top loading case packing machine

A medium-output, top loading case packer for loose or bundled products, the CPV15 has been conceived to assure maximum ergonomics for operating staff and guarantee smooth handling even for unusually shaped productsthanks to servo technology.

A medium-output, top loading case packer for loose or bundled products, the CPV15 has been conceived to assure maximum ergonomics for operating staff and guarantee smooth handling even for unusually shaped productsthanks to servo technology.

Loose tubes packed to perfection.

Maximum attention to ergonomics is a hallmark of this case packer, as it is with all IMA BFB equipment for the cosmetics industry.

In order to be as operator-friendly as possible, the case erecting mechanism is designed to ensure low positioning of the horizontal case magazine, which also ensures increased autonomy. Machine parts can be reached without operators needing to move from one side of the machine to the other.

The infeed system is equipped with worm screws (for loose products) for the correct orientation of the containers and a comb which moves sideways to collate the products.

Equipped as standard, the CPV15 features a 2-axis robot to insert the collation into the case.

IMA BFB
settings_applications Production Plant
IMA BFB

CPV15 Highlights

1.
Cantilever design enables great accessibility and easy cleaning.
2.
Cases positively erected and moved to closing section by a set of reciprocating lugs.
3.
Cases can be closed with adhesive tape or with hot-melt glue.
4.
4 or 6-axis robot available for special applications.

Case Packer - Palletizer integrated versions

CPV Series is available in different palletizer-integrated versions, according to the output speed required.

CPV15 Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA CPV15
Product dimensions A B C
CPV15 Min. 190 80 100
Max 600 400 350
Max. speed 15

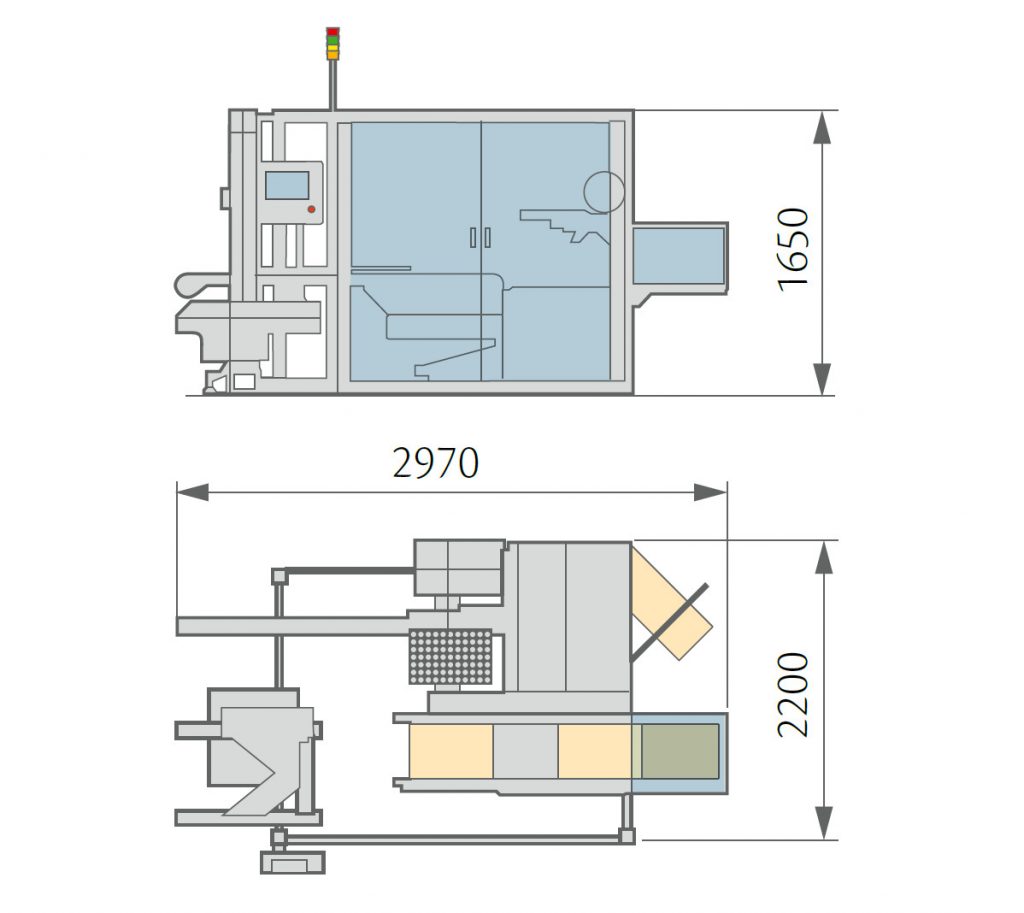

CPV15 Layout CPV15 Layout

CPV15 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Case magazine
search
Positive case opening and folding
search
Product picking
search
Product placing
