CPH2
Side loading case packing machine

Medium speed case packer designed to handle the widest range of products and materials used in pharmaceutical, personal care and food industries.

Medium speed case packer designed to handle the widest range of products and materials used in pharmaceutical, personal care and food industries.

Fit for the future

Fully automatic side loading case packer designed to satisfy all of your current and future case packing requirements.

The machine has been built to maximize efficiency and ease of use in an ever increasingly demanding work place, to guarantee complete line clearance and to ensure total access to all modules.

The CPH2 is designed to ensure total control throughout all stages of the serialization process.

Flexibility, maximum efficiency, total access and total control make the CPH2 a casepacker of new generation.

IMA BFB
settings_applications Production Plant
IMA BFB

CPH2 Highlights

1.
Easy cases loading due to the 830 mm high ergonomic case magazine.
2.
Built to guarantee complete line clearance.
3.
Designed to ensure total access to all machine modules.
4.
Positive case transport throughout the entire process.
5.
Cases can be closed with adhesive tape or with hot-melt glue.
AGGREGATION MODULE. The overall minimal footprint and the cantilever design for improved accessibility ensure total control throughout all stages of the serialization process. The machine can be equipped with a compact module housing labelling units and cameras for aggregation purposes.

Case Packer - Palletizer integrated versions

CPH2 is available in different palletizer-integrated versions, according to the output speed required.

CPH2 Thumbnail
  • Technical Data
  • Machine Layout
CPH2 TECHNICAL DATA
Case dimensions A B C
Min. 220 100 90
Max. 600 400 400
Product dimensions a b c
Min. 25 22 60
Max. 590 70/150 220
Speed 10 cases/min.

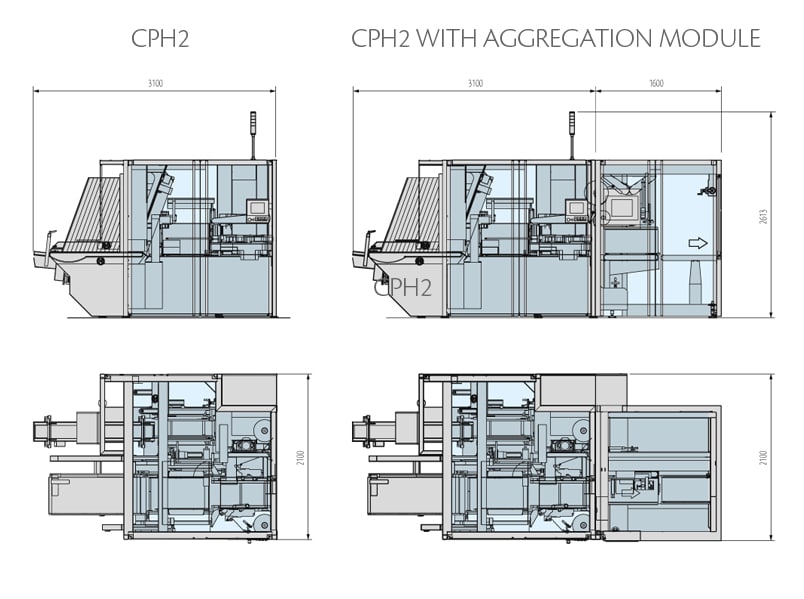

CPH2 Layout CPH2 Layout

CPH2 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Case magazine
search
Case opening and folding
search
Cartons upstacking
search
Main pusher
search
Case closing
