C40
Blister packaging machine

The best price-performance ratio machine in its range, the C40 Series is the answer for those customers who demand high production efficiency for small/medium batches with frequent changeovers.

The best price-performance ratio machine in its range, the C40 Series is the answer for those customers who demand high production efficiency for small/medium batches with frequent changeovers.

Dressed for success

The modern design of the C40 Series assures a complete visibility of the whole packaging process as well as full accessibility for the operator.

Downtimes are reduced to a minimum, thanks to easy cleaning operations and fast and simple changeovers. Moreover, the consolidated technology has a low impact on the maintenance costs.

nature_people

Sustainability

The IMA machines are designed so that the production process involves minimal environmental impact:

  • energy consumption is reduced to a minimum,
  • the waste materials are minimized,
  • compatibility with the use of recycled materials.
IMA Safe
settings_applications Production Plant
IMA Safe

C40 Highlights

1.
Best performance price ratio in its class.
2.
Compact and reliable connection between blister machine and cartoner.
3.
Flexibility in layout.
4.
Number of format parts has been reduced to a minimum.
5.
Complete accessibility for easy cleaning.

Versions

The C40 is available in the following configurations:

•         C40-A86 – 350 blisters and 350 cartons/minute

•         C40-A83 – 350 blisters and 160 carton/minute

•         C40 Stand Alone – 350 blisters/minute

The C40 Stand Alone can be easily connected to any other downstream packaging machine (cartoner, wallet packer, flowpacker or end-of-line) in order to satisfy any customer production needs.

C40 Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA C40
  Blister Dimensions Carton dimensions
Width 30-90 mm 35-95 mm
Length 60-220 mm 65-150 mm
Depth / Height 3-12 mm 12-90 mm
Production output
Model C40 STAND ALONE C40-A83 C40-A86
Blisters up to 350 blisters/min.
Cartons / up to 160 cartons/min. up to 350 cartons/min.

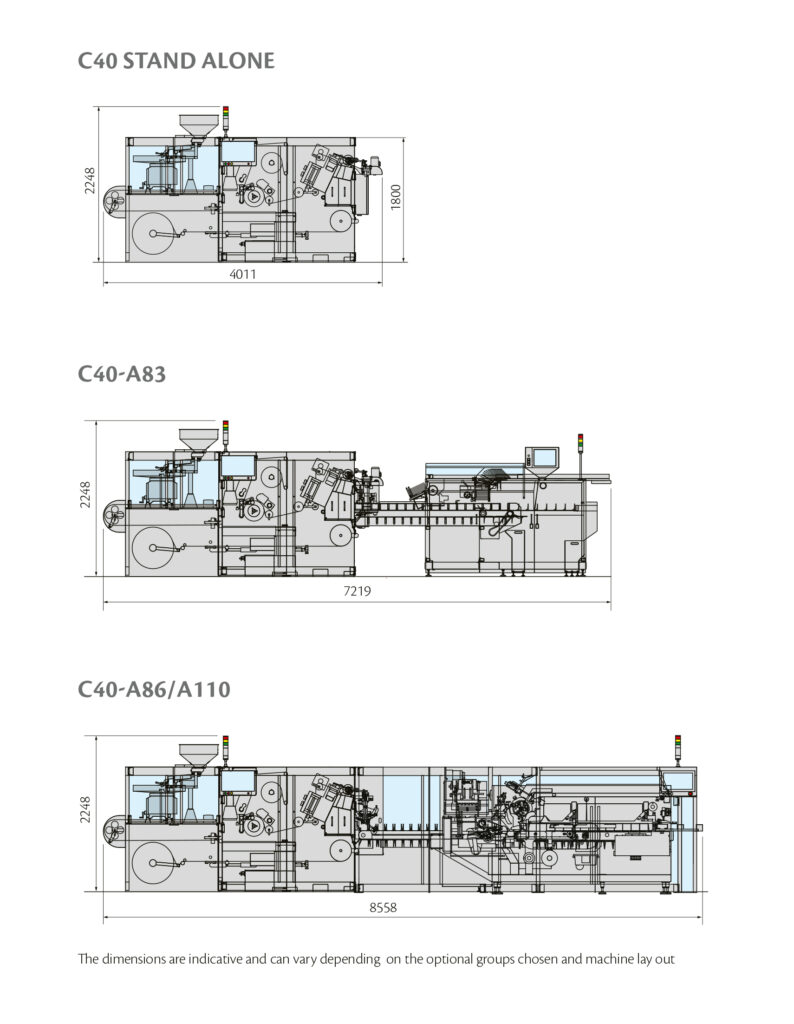

C40 Layout

C40 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Pre-heating and forming area
search
Filling control system
search
Sealing area
search
Cutting area
search
Carton pick-up and opening
search
Product insertion into the carton
search
Carton closing
