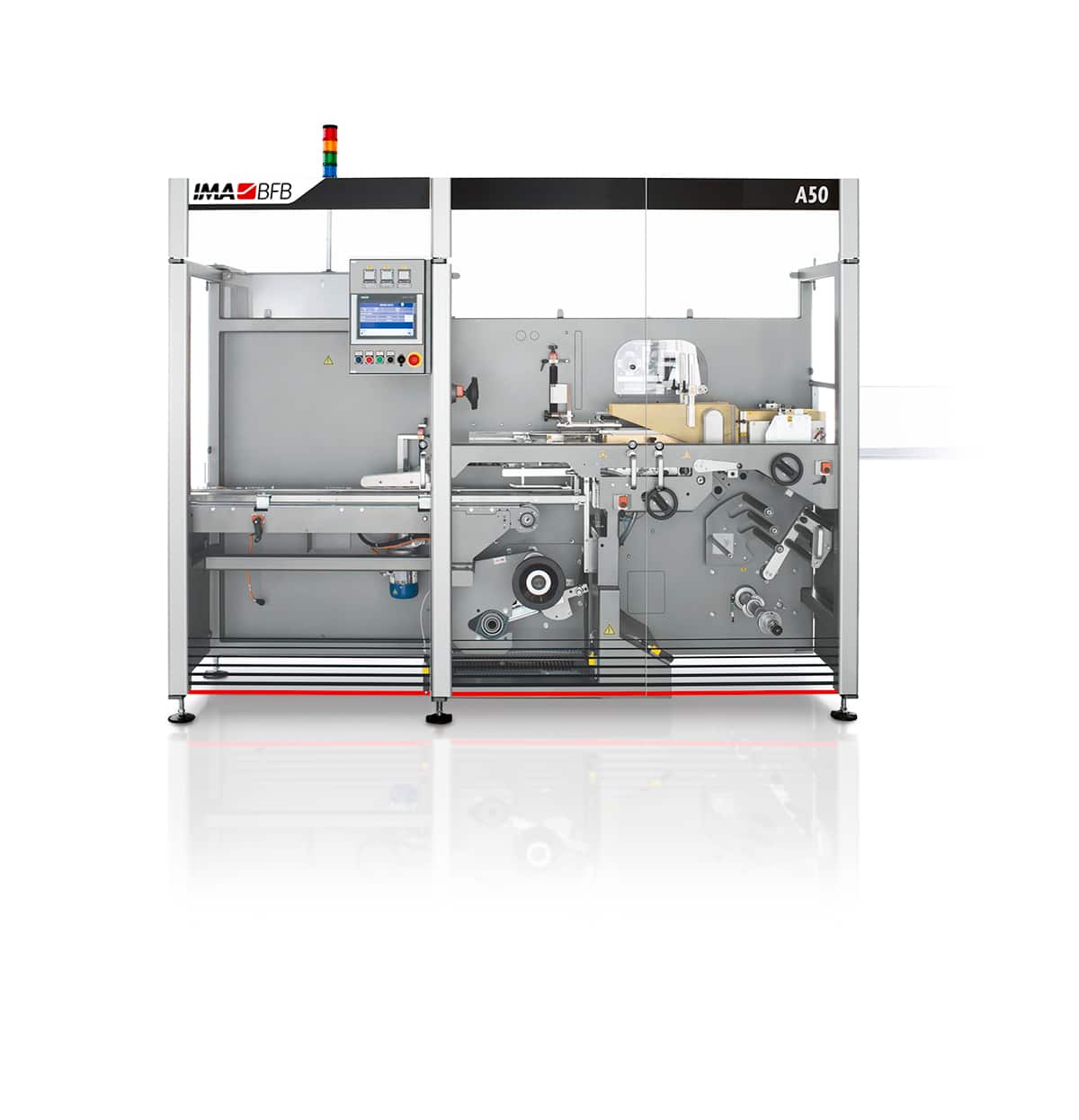

A50
Over wrapping machine

Specifically built for the over wrapping of foodstuffs or beverages with fully mechanical movements to reduce the need for maintenance, the A50 uses cellophane, PVC, PP and all reel-fed, heat-sealable film types.

Specifically built for the over wrapping of foodstuffs or beverages with fully mechanical movements to reduce the need for maintenance, the A50 uses cellophane, PVC, PP and all reel-fed, heat-sealable film types.

Innovative over wrapping to cope with difficult or thin films.

Compact in size, the A50 is an automatic over wrapper using an innovative film transport system designed to allow for difficult and thin films.

Further to its consolidated reliability, the A50 offers excellent accessibility and very easy changeover procedures, switching between cartons, trays, bundles and other parallelepiped products.

Running at 60 cycles/min, the A50 can benefit from a host of optional groups to respond to specific needs and enhance performance.

IMA BFB
settings_applications Production Plant
IMA BFB

A50 Highlights

1.
Several different lateral sealing unit.
2.
Film unwinding by means of driven drums to move film under guillotine knife.
3.
Lateral folding box with second and third fixed folders.
4.
Tear tape unit available.
5.
Adjustment points equipped with digital indicator for size changeover.
6.
Reel holder with quick release and fixed stop to facilitate reel replacement.
  • Technical Data
  • Machine Layout



TECHNICAL DATA A50

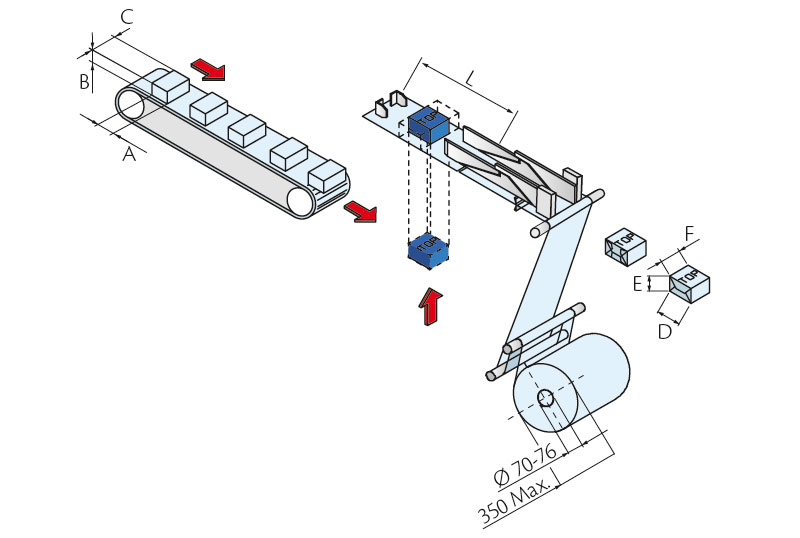

Product dimensions A B C D E F H L
Min. 30 25 60 30 25 60 100 120
Max. 220 120 320 220 120 320 420 700
Film width 100/420
Cutting length 120/700
Production capacity 60 cycles/minute

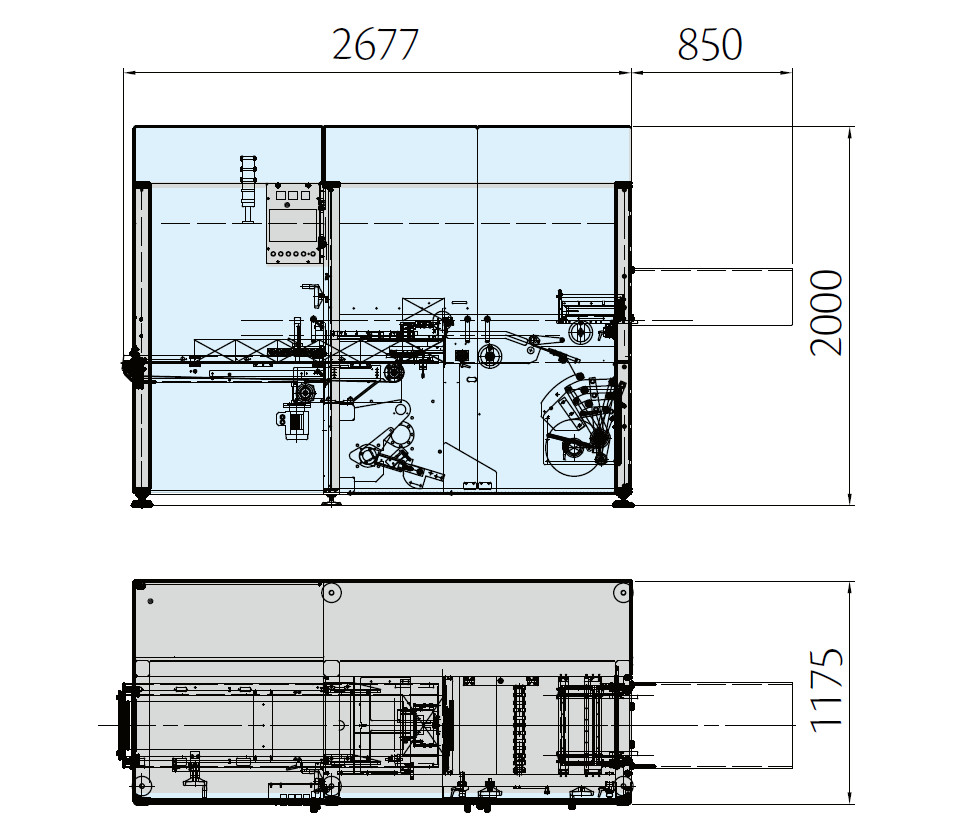

A50 Layout A50 Layout

A50 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product infeed
search
Film folding area
search
Product outfeed
