3754
Top loading case packing machine

Designed specifically to handle loose or bundled bottles, even with unusual shapes, this servo driven, top loading case packer benefits from excellent ergonomics, ensures top-level output and can manage two cases simultaneously.

Designed specifically to handle loose or bundled bottles, even with unusual shapes, this servo driven, top loading case packer benefits from excellent ergonomics, ensures top-level output and can manage two cases simultaneously.

Top loading, high speed case packing.

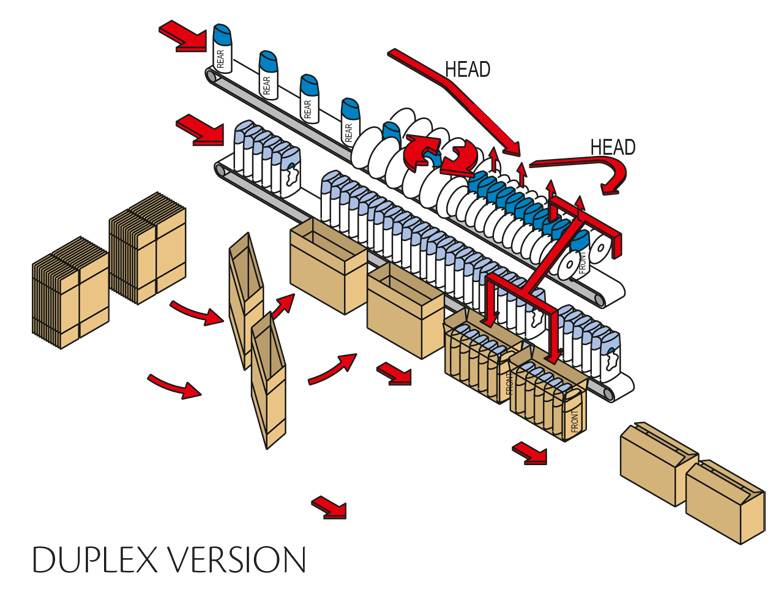

With a remarkably compact footprint, the monobloc 3754 case-packer has been designed to provide operating ergonomics, smooth handling and high-speed processing. Erecting, loading and sealing up to 50 cases/min, the 3754 (in its duplex version) is equipped with 2 infeed hoppers and a case magazine handling 2 rows of cases.

The forced opening and closing groups process 2 cases simultaneously, further boosting machine output.

To assure perfect handling of difficult shaped bottles, the infeed system is equipped with non-stop worm-screws to correctly orientate the containers.

IMA BFB
settings_applications Production Plant
IMA BFB

3754 Highlights

1.
Machine design enables great accessibility and easy cleaning.
2.
Equipped with a robot to insert the collation into the case.
3.
Cases can be closed with adhesive tape or with hot-melt glue or both.
4.
Complete changeover possible in 20 minutes.
5.
Automatic Gripper Head change is available as optional.
  • Technical Data
  • Machine Layout
TECHNICAL DATA 3754
Max speed up to 50 cases/min.
Product dimensions A B C

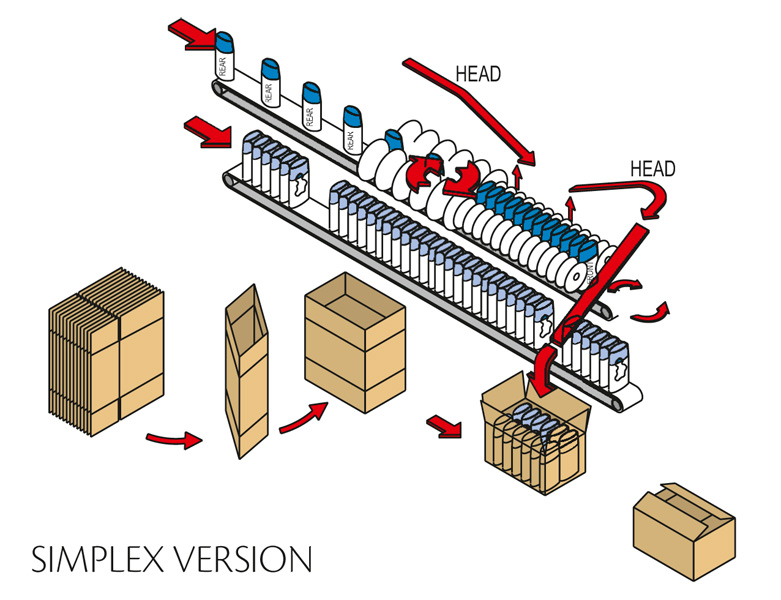

Simplex Min. 165 80 165
Max. 600 300 300
Duplex Min. 165 80 165
Max. 325 180 300

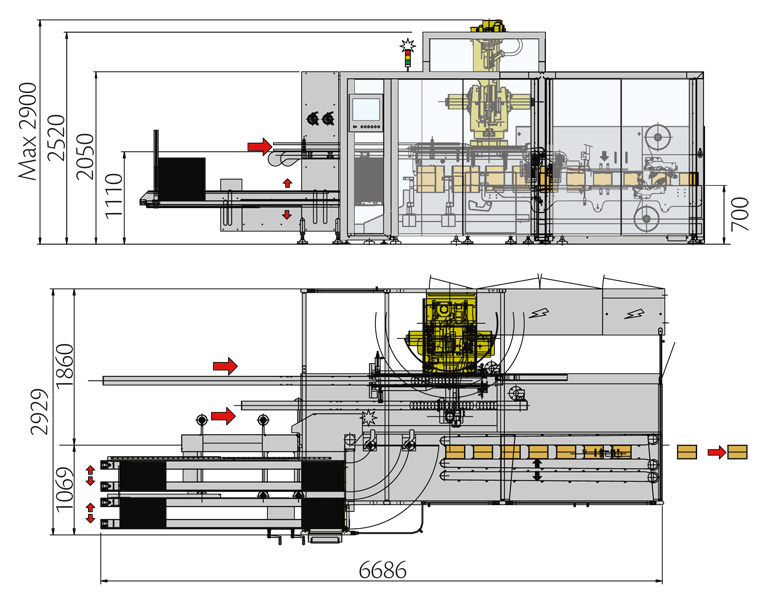

3754 Layout 3754 Layout 3754 Layout

3754 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product infeed and pick up
search
Product introduction
