Over wrapping machine

Over wrapping for parallelepiped cosmetic and toiletry items, the 3705 is a high-speed machine for individual and/or multiple product packs on one layer, using cellophane, PVC, PP and all other reel-fed, heat-sealable films.

Over wrapping for parallelepiped cosmetic and toiletry items, the 3705 is a high-speed machine for individual and/or multiple product packs on one layer, using cellophane, PVC, PP and all other reel-fed, heat-sealable films.

High-quality individual or multiple wrapping for regular products.

With an output of up to 300 bundles/min, the 3705 is a top-performing over wrapping machine for individual and/or multiple parallelepiped product packs.

With an oil-tight steel frame containing all motions, this machine benefits from the smooth speeds of a servo-controlled main motor which eliminates all abrupt stop-start issues. Changeover by replacement of pre-assembled and pre-adjusted groups is fast and easy, so as to avoid unwanted downtime.

IMA BFB
settings_applications Production Plant
IMA BFB

3705 Highlights

1.
Positive product handling during operations cycle with several checking points.
2.
Safety checks during wrapping phase: wrapping film missing and tear tape missing.
3.
Automatic reel splicing device.
4.
Lubrication: oil forced circulation by motor-driven pump with safety pressure switch.
5.
Tear tape unit available.
6.
Film print unit available.
  • Technical Data
  • Machine Layout
TECHNICAL DATA 3705
Wrapping film CELLOPHANE.PE
Max. speed 250/300
Product dimensions A B C
3705 A Min. 25 15 60
Max. 140 50 220
3705 E Min. 45 15 60
Max. 80 50 210

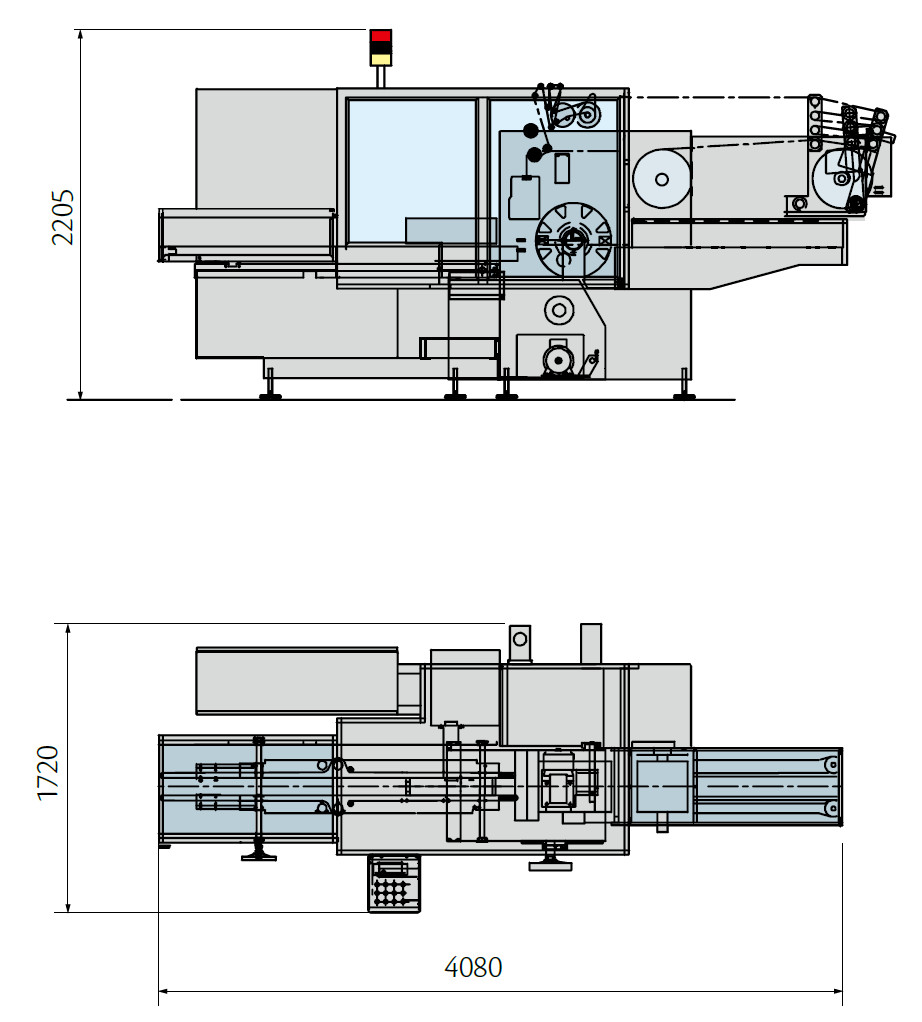

3705 Layout 3705 Layout
