GENESISPACK
Flow wrapper

A unit of proven technology and reliability, developed and assembled starting from a Teknoweb machinery basis to better meet the wet wipe packaging specificity, obtaining an extremely reliable system at an affordable investment.

A unit of proven technology and reliability, developed and assembled starting from a Teknoweb machinery basis to better meet the wet wipe packaging specificity, obtaining an extremely reliable system at an affordable investment.

Built to succeed.

First result of TEKNOWEB and IMA joint innovation, GENESISPACK is the answer for a technological and reliable wet wipe flow wrapper.
The production speed can reach up to 100 packs per minute, in a compact design that fits any space.
Scrap is reduced by a mark on mark automatic splice; GENESISPACK is equipped with a die cutter with lift function and a high-power Long Dwell sealing head, which guarantees optimal efficiency and very low waste.
Longitudinal sealing by multiple sealing rollers with trim removal ensures greater cleanliness and better pack aspect

This flow wrapper features an integrated quality control (Vision System) for non-conformities: “no-product/no-bag” and “misplaced product” checks are  always included.
Genesispack respects Pharma Good Manufacturing Practice (GMP) standards.

An integrated and continuous quality control system (Vision System) checks for non-conformities, with “no product/no-bag” and “misplaced product” procedures included.
Recipes are stored in HMI (Human Machine Interface), for quick answers and error-free operations.

Teknoweb Converting
settings_applications Production Plant
Teknoweb Converting

GENESISPACK Highlights

1.
Mark on mark automatic splice for reduced scrap.
2.
Phasing belts and lug chain to ensure stack placing pitch.
3.
Pharma GMP (Good Manufacturing Practice) standards, easy clean.
4.
Full process, integrated quality control (Vision System) for non-conformities.
5.
Continuous quality control, “no-product/no-bag” and “misplaced product” always included.
6.
Recipes in the HMI (Human Machine Interface) for quick reactions and error-free operations.
With a production speed up to 100 packs/min combined to high-efficiency and very low waste, GENESISPACK is a top class automation platform in a very space-saving design.

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Packet
  • Technical Data
  • Machine Layout
TECHNICAL DATA GENESISPACK
Design speed up to 100 packs/min
Operating speed min 100 packs/min | max 80 packs/min with gusset
Linear speed (m/minute) 35
Motor Full servo
Roll diameter up to 350 mm
Roll width up to 500 mm
Stack length min 100 mm | max 320 mm
Folded wipe width min 60 mm | max 120 mm
Stack height min 5  mm | max 80 mm
Number of labellers std 2 | opt 3
Film splice Automatic
Transversal sealing head Long Dwell Technology
Efficiency (%) > 95%
Waste (%) < 2%
Energy absorption 18 KW

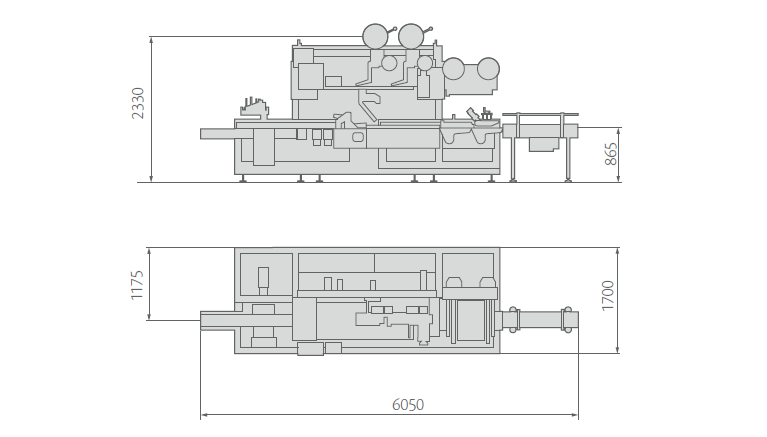

GENESISPACK Layout

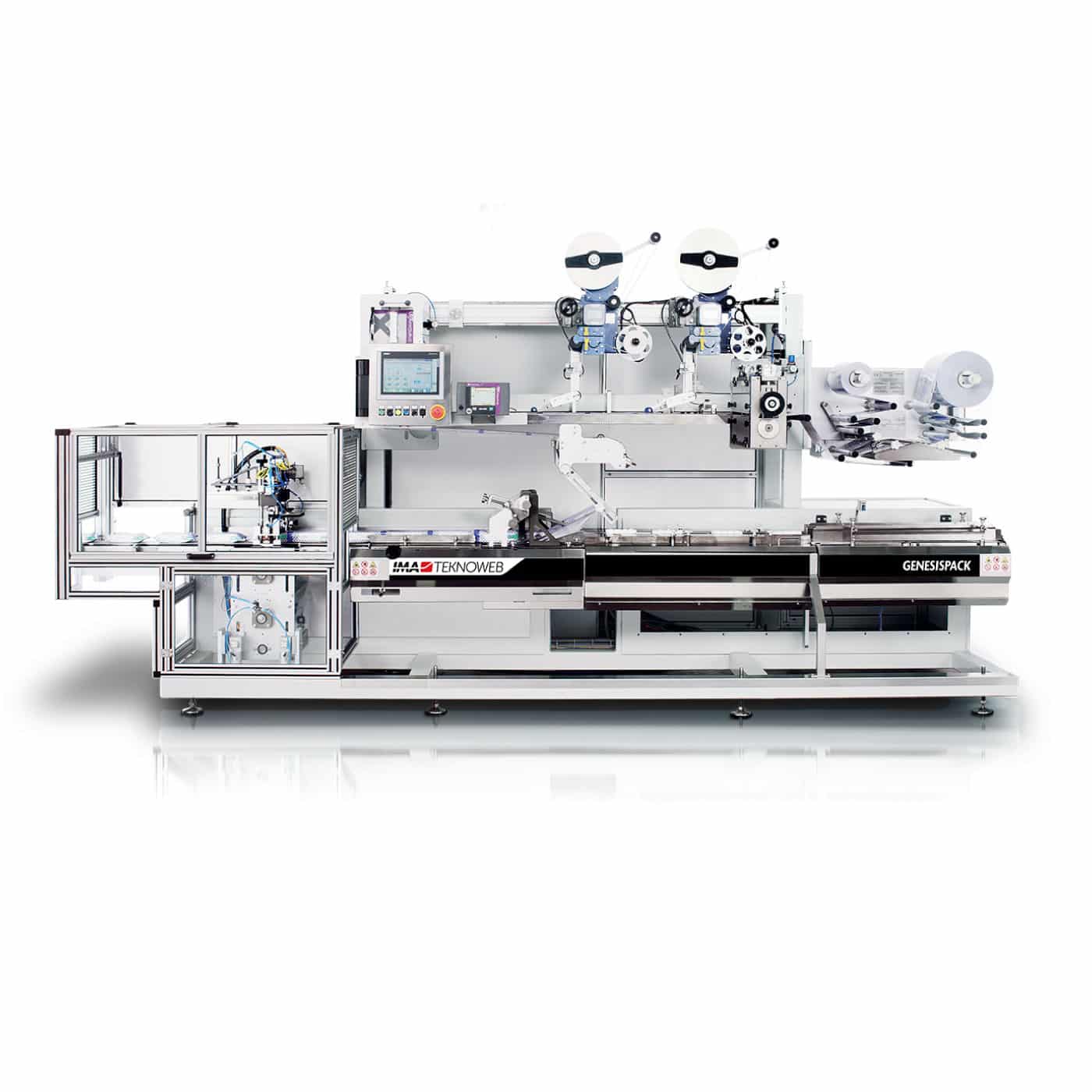

GENESISPACK Gallery
