SC SYSTEM

Capsule selection and feeding unit

SC SYSTEM capsule feeding and selection device improves capsule fillers’ productivity. It automatically selects any crushed or ovalised capsule and feeds only the perfect ones into the machine hopper.

Download Brochure

Feeding only perfect capsules.

SC SYSTEM consists of a capsule container, placed near the capsule filling machine, provided with a continuous rotating wheel with a series of calibrated holes so that only perfect capsules can pass through. After selection, capsules are fed into the machine hopper with an uplifting belt or a blow of air.

Download Brochure

Production Plant

IMA Active

SC SYSTEM Highlights

1.
Different selecting wheels available depending on capsule size.

2.
Quick and easy size changeover.

3.
Automatic stop and restart when the capsule minimum load level is reached inside the filling hopper.

Technical Data

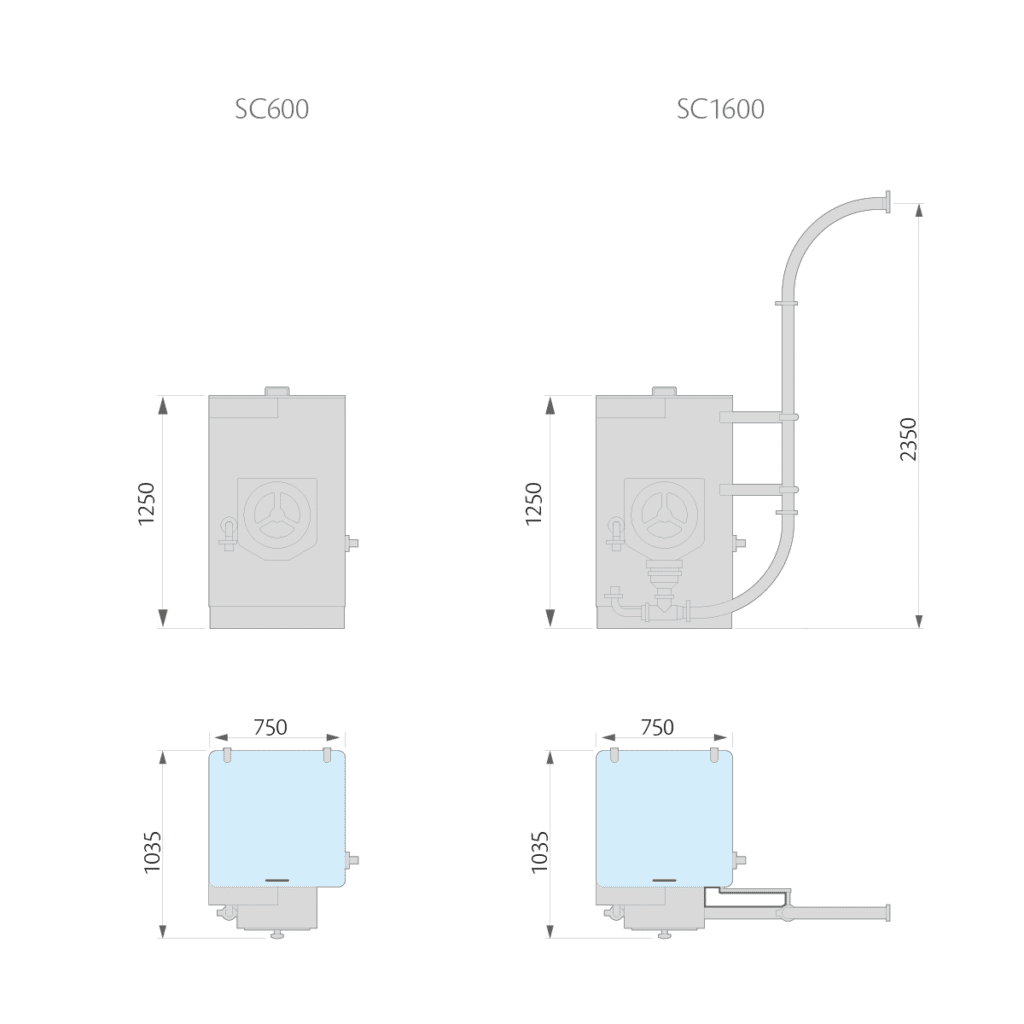

Machine Layout

TECHNICAL DATA SC SYSTEM
Model	SC 500	SC 1000	SC 600	SC 1600
Production (cps/h)	120,000 for sizes 000, 00, 0L, 1L 150,000 for sizes 1, 2, 3, 4, 5, Supro		200,000 for sizes 000, 00, 0L, 1L 230,000 for sizes 1, 2, 3, 4, 5, Supro
Net weight (kg)	185	265	200	290
Container capacity (l)	190 (=approx. 100,000 caps. Size 0)		270 (=approx. 150,000 caps. Size 0)
Height at load level (mm)	A: 1,100 ~ 1,150		A: 1,290 ~ 1,240
Capsule outlet height (mm)	B: 375 ~ 425	B: 2,200 ~ 2,250	B: 375 ~ 425	B: 2,200 ~ 2,250
Overall height (mm)	–	C: 2,450 ~ 2,500	–	C: 2,450 ~ 2,500
