PH-BIN and PH-DRUM
Product containers

Designed according to the most restrictive GMP requirements, PH-BIN and PH-DRUM ensure perfect efficiency with no product losses. Their large bending radius without dead corners avoids product residue and facilitates cleaning operations.

Designed according to the most restrictive GMP requirements, PH-BIN and PH-DRUM ensure perfect efficiency with no product losses. Their large bending radius without dead corners avoids product residue and facilitates cleaning operations.

Take care of your products.

PH-BIN is designed for handling and blending powders and granules. Fitted with “Trigon” or “Aries” holding systems, it can be interfaced with the loading and unloading devices of the Pharma Handling Systems.

Also built in AISI 316 stainless steel, PH-DRUM is fitted with an upper lid complete with clamp connection to avoid product dispersion.

IMA Active
settings_applications Production Plant
IMA Active

PH-BIN and PH-DRUM Highlights

1.
Perfect efficiency ensured by rectangular cross section and inclination of the upper part of PH-BIN.
2.
Spider version available: its reduced volume compared to standard bins ensures great flexibility and the processing of small batches.
3.
T-Bin available to handle capsules and tablets: its decentralised loading lid simplifies product loading operations.
4.
Sanitary butterfly valve, pivoting wheels, drum numbering and weight indication available as an option.
  • Technical Data
  • Machine Layout
 TECHNICAL DATA PH-MINI-BIN
Litres 30 60 100 150 200 250 300
A (mm) 750
B (mm) 885
C (mm) 590 680 785 925 1,065 1,205 1,070
D (mm) 650 740 855 995 1,135 1,275 1,165
E (mm) DN 500
F (mm) DN 150
G (mm) 183



TECHNICAL DATA PH-MIDI-BIN
Litres 300 400 500 600
A (mm) 750
B (mm) 885
C (mm) 1,055 1,215 1,365 1,515
D (mm) 1,155 1,315 1,465 1,615
E (mm) DN 500
F (mm) DN 200
G (mm) 183



TECHNICAL DATA PH-MAXI-BIN
Litres 700 1000 1250 1500 1700 2000
A (mm) 1,125
B (mm) 1,325
C (mm) 1,360 1,570 1,735 1,900 2,075 2,245
D (mm) 1,460 1,670 1,835 2,000 2,175 2,345
E (mm) DN 500
F (mm) DN 250
G (mm) 183



TECHNICAL DATA T-BIN
Litres 150 300 300 400 500 600
A (mm) 900 1,200
B (mm) 650 910 755 865 975 1,085



TECHNICAL DATA SQUARE BIN 1200
Litres 600 700 800 900 1000 1100
A (mm) 1,280 1,350 1,420 1,490  1,590 1,630
B (mm) 1,356 1,426 1,496 1,566 1,636 1,706
Litres 1200 1300 1400 1500 1600 1700
A (mm)  1,700 1,770 1,840  1,910 1,980  2,050
B (mm)  1,776 1,846 1,916  1,986 2,056 2,126

Litres 1800 1900 2000 2100 2200
A (mm)  2,120    2,190 2,260  2,250 2,320
B (mm) 2,196 2,266  2,336  2,406  2,476



TECHNICAL DATA PH DRUM
Litres 10 20 30 50
A (mm) 300 400
B (mm) 170 315 455 430
C (mm) 330 430

Litres 70 100 150 200
A (mm) 400 500 600
B (mm) 576 535 785 735
C (mm) 430 540 640

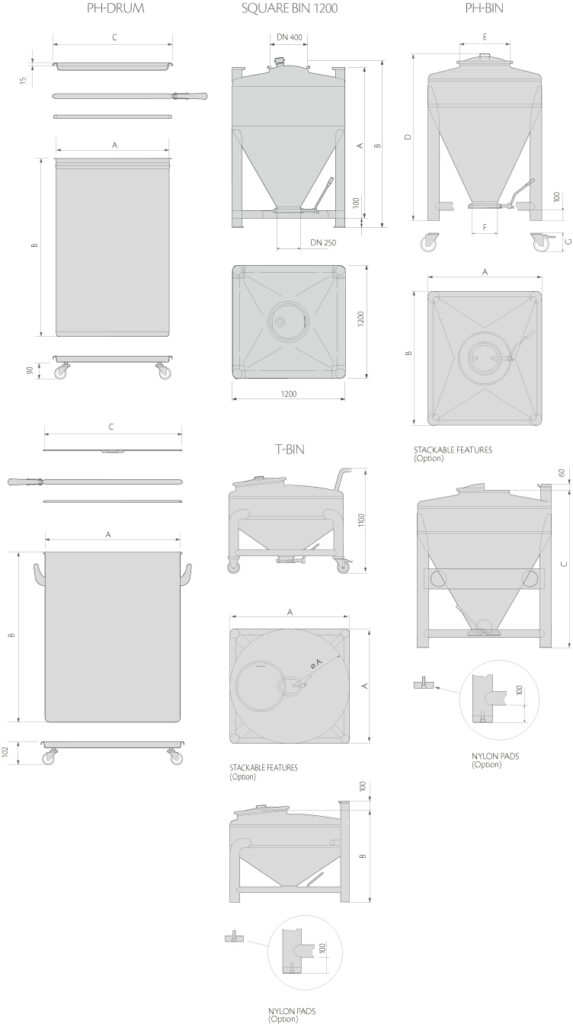

PH-BIN and PH-DRUM Layout

PH-BIN and PH-DRUM Gallery

keyboard_arrow_left
keyboard_arrow_right
search
PH-BIN in spider version
search

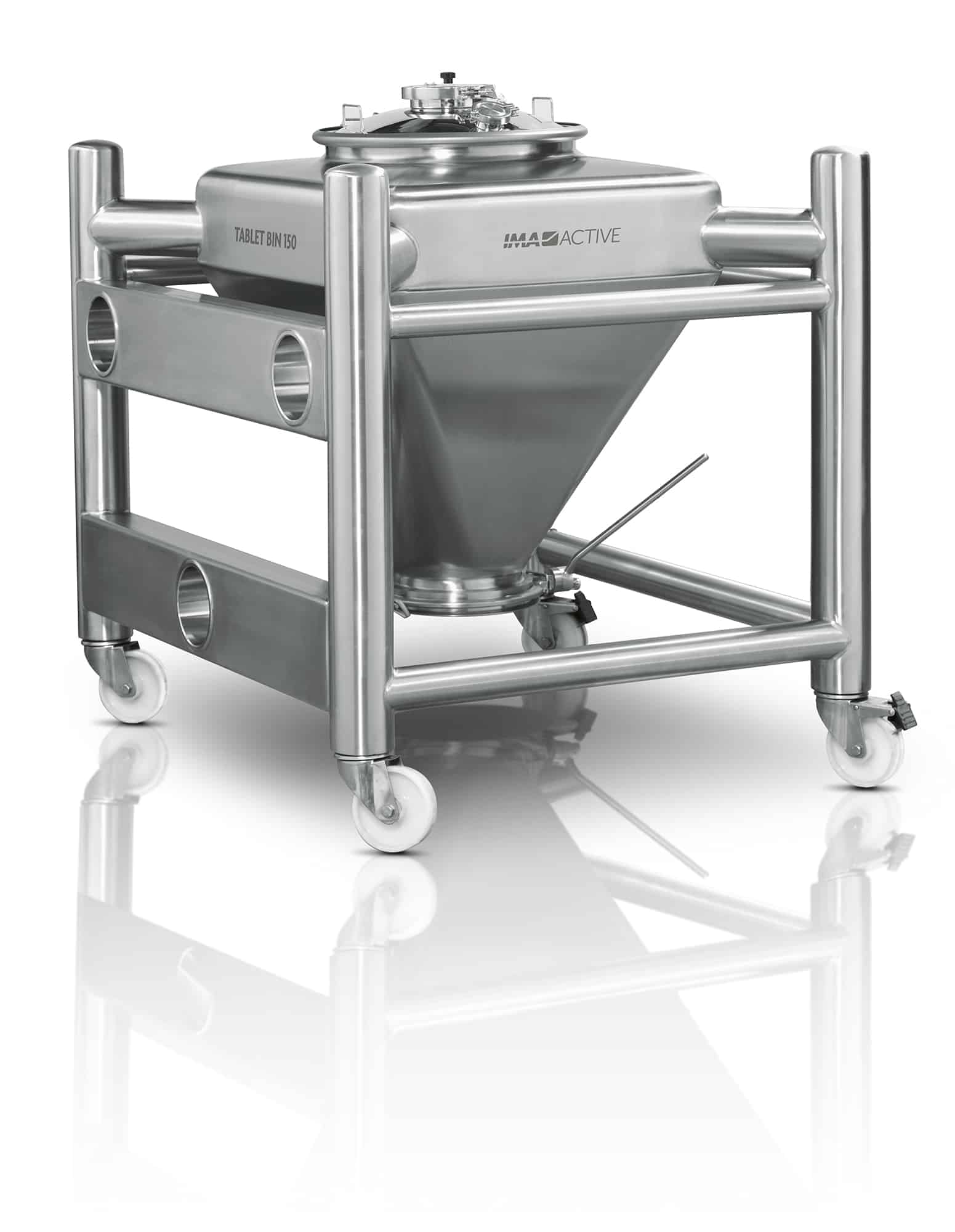

T-BIN
search
PH-DRUM
