MS560
Stretch banding and shrink wrapping machine

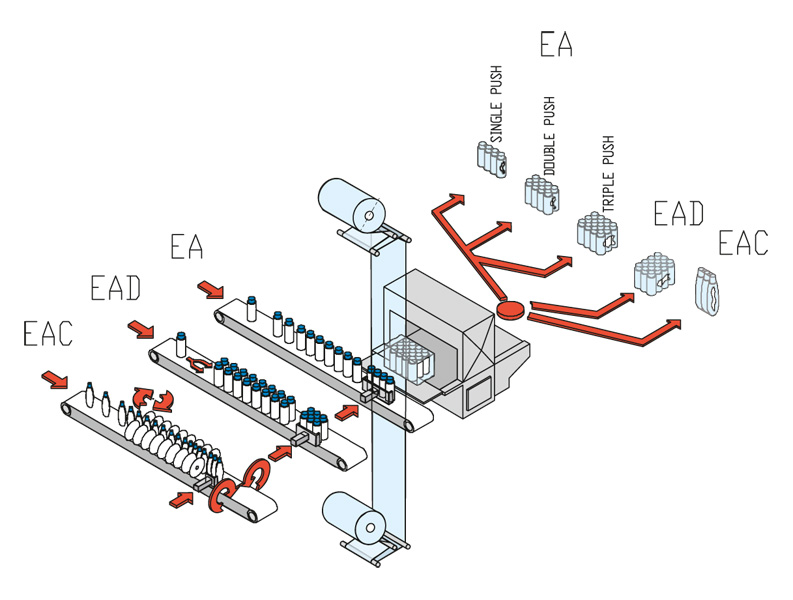

Designed to bundle bottles or cartoned bottles and shrink wrap them with PE film in the extremely compact T600 tunnel, the MS560 ensures time-saving efficiency, ergonomics, ease-of-use and top quality execution.

Designed to bundle bottles or cartoned bottles and shrink wrap them with PE film in the extremely compact T600 tunnel, the MS560 ensures time-saving efficiency, ergonomics, ease-of-use and top quality execution.

Efficient processing with downtime kept at minimum.

Built ergonomically and with maximum accessibility to facilitate cleaning procedures and maintenance, the MS560 ensures smooth, accurate product handling at speeds of up to 40 cycles/min thanks to servo-driven technology.

Reel change times can be totally eliminated with an optional automatic film splicing device, putting the accent on efficiency as well as accuracy.

IMA BFB
settings_applications Production Plant
IMA BFB

MS560 Highlights

1.
Tool-free size changeover in just 5 minutes with digital indicators to assist with adjustments.
2.
Reel spindles featuring pneumatic quick release to minimise the downtime for reel replacement.
3.
As standard on the T600 tunnel: transparent window and internal lighting to inspect the inside of the heat chamber.
4.
Film cooling fan at tunnel discharge point.
  • Technical Data
  • Machine Layout
TECHNICAL DATA MS560
Product dimensions A B C
Min. 60 30 60
Max. 220 210 400
Max. speed 40
Wrapping film PE 40-70 micron

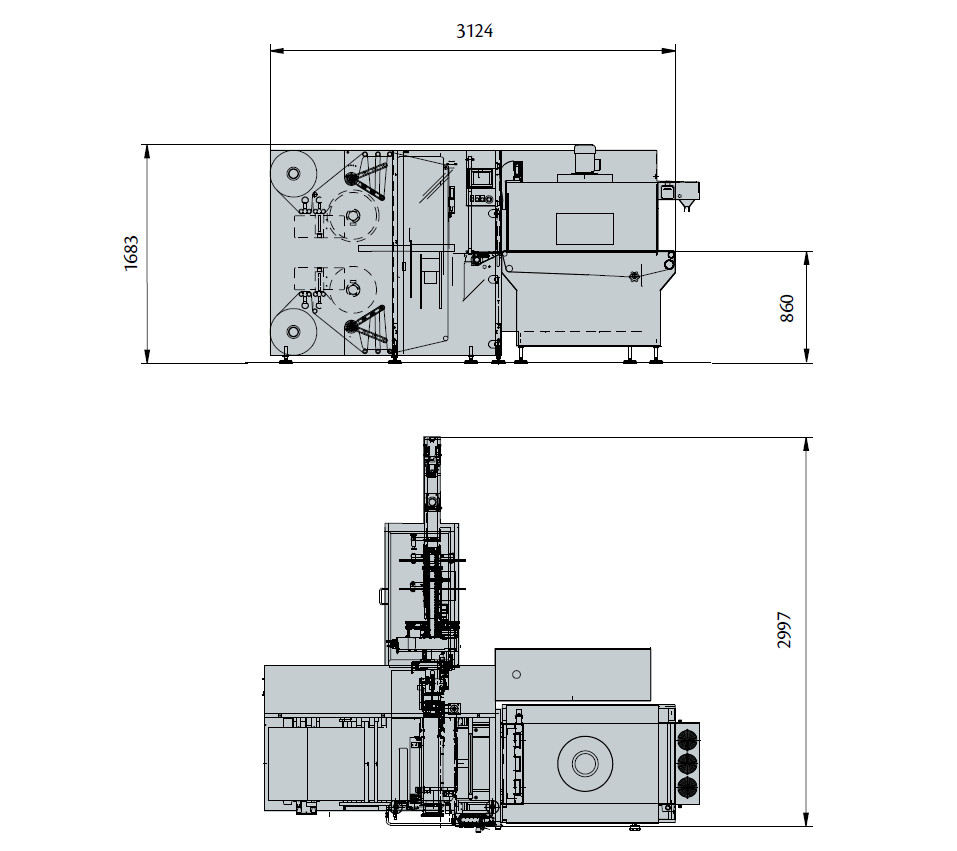

MS560 Layout MS560 Layout

MS560 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Film unwinding
search

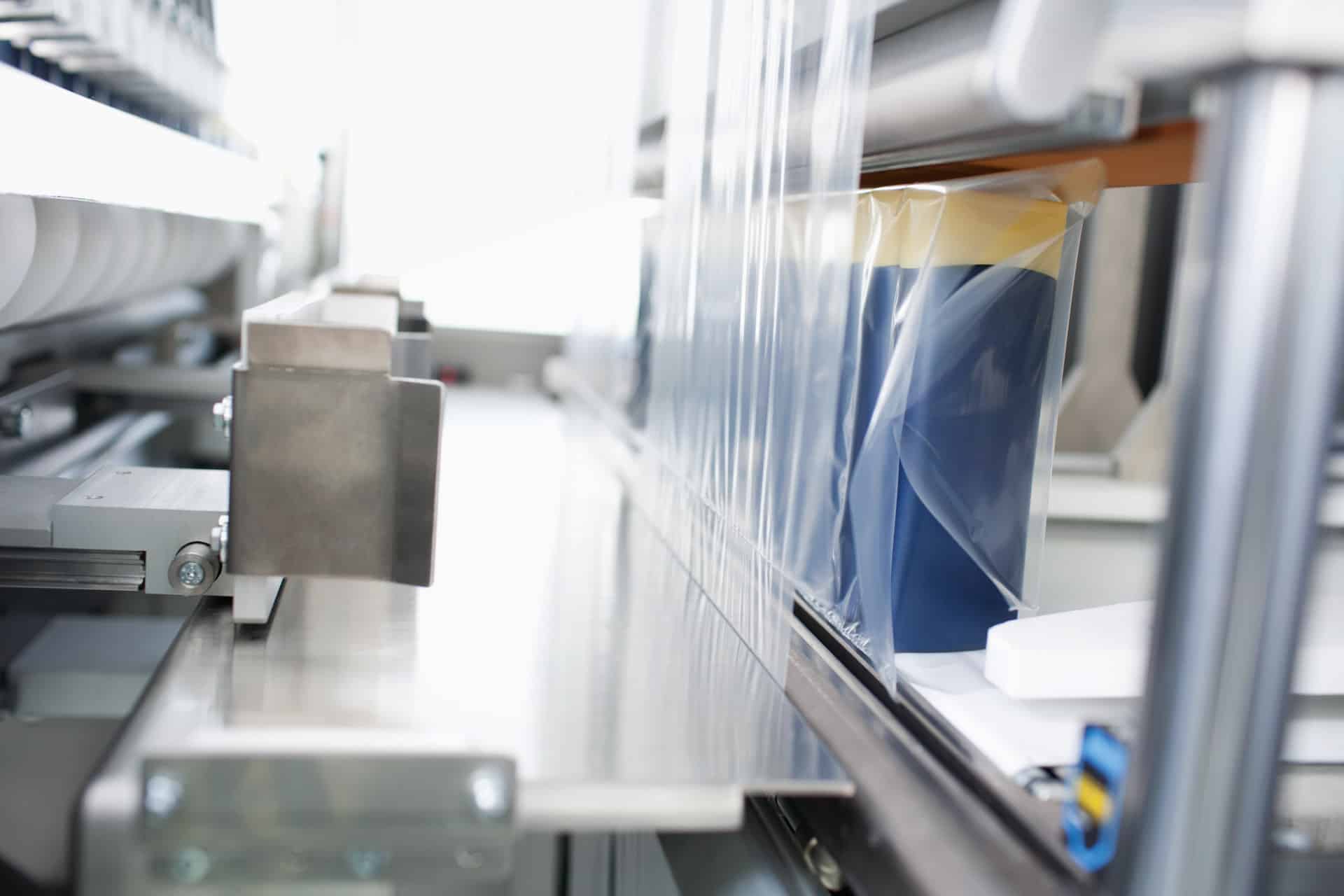

Film sealing
search

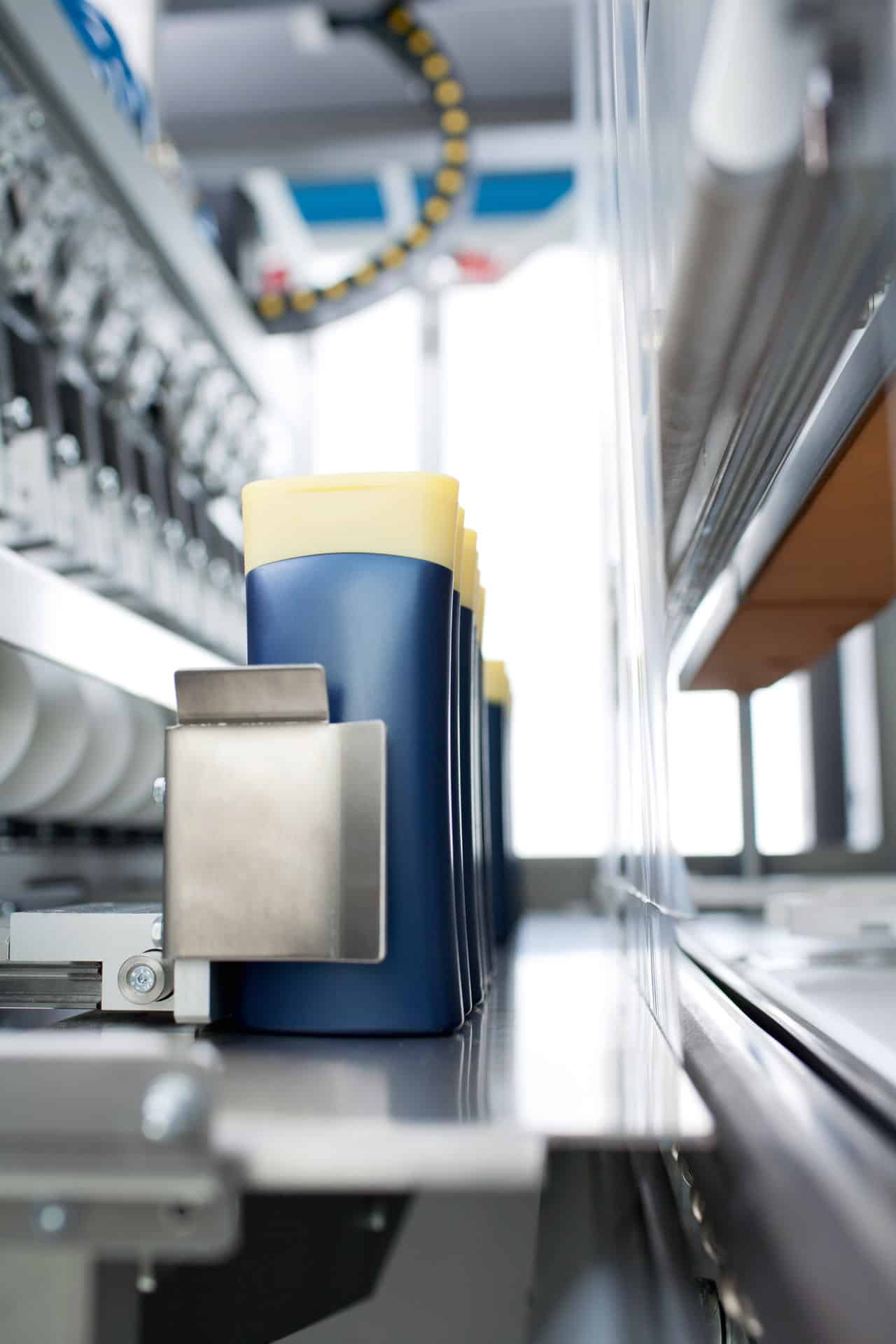

Product exit
