IC 150C - IC 175C
Intermittent motion cartoner

High flexibility in feeding, thanks to the compatibility with many different feeding systems.

High flexibility in feeding, thanks to the compatibility with many different feeding systems.

Choose your product, choose your speed

The IC Family consists of IC 150C and IC 175C, with different speeds.
This range of machines is multi-purpose and easily customizable.
The machines’ capability is a very important factor because it allows to connect different feeding systems of blisters, bottles, trays and tubes.

The machines are suitable to be equipped with additional accessories according to the costumer’s need like Pharma bar code reader, Online leaflet folding unit, Leaflet presence control and Inkjet  printer.

IMA Safe
settings_applications Production Plant
IMA Safe P.G.

IC 150C - IC 175C Highlights

1.
Easy operator access.
2.
Suitable of installation in restricted areas.
3.
Can be fitted with a wide range of feeding units.
4.
Highly compatible with ancillary equipment.
5.
IC 150C is CE certified.
  • Technical Data
  • Machine Layout
TECHNICAL DATA IC 150C
Carton dimensions Optional
Width Min. 28* mm – Max. 92 mm
Height Min. 14 mm – Max. 60 mm 85 mm
Lenght Min. 55 mm – Max. 190 m 150 mm
Width + Height Max. 140 mm 160 mm
Production output Up to 120 cartons/min.
  • without leaflet min. carton width is 20mm
IC 175C – TECHNICAL DATA
Carton dimensions
Width Min. 32 mm – Max. 85 mm
Height Min. 12 mm – Max. 60 mm
Lenght Min. 60 mm – Max. 120 mm
Width + Height Min. 52 mm – Max. 140 mm
Production output Up to 150 cartons/min.

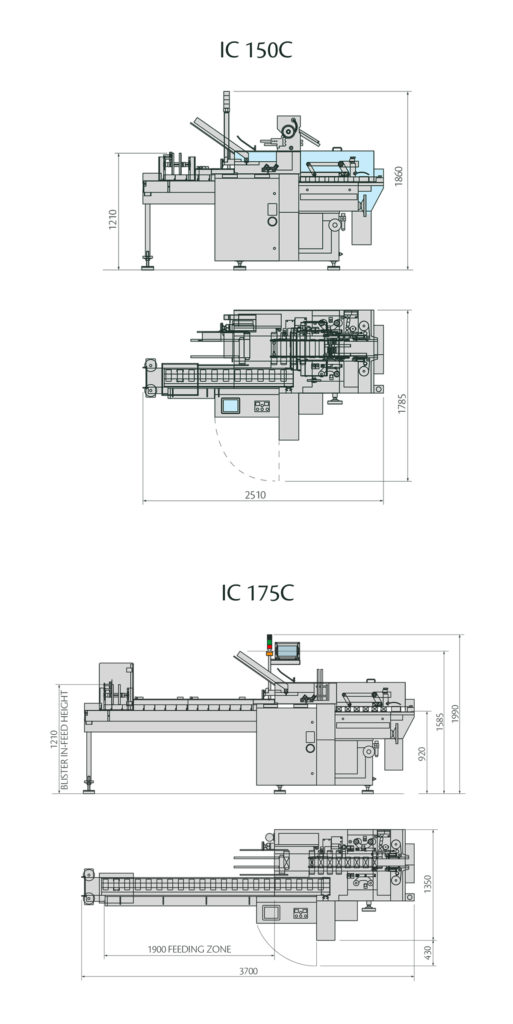

IC 150C - IC 175C Layout

IC 150C - IC 175C Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Feeding area with blister magazine
search
Cartons closing
search
IC 150C - IC 175C general view
search
Leaflet folding unit
