GS EVOLUTION
Coating pan

Designed for highly automated installations, GS EVOLUTION represents the ideal base for a contained plant. The machine reduces operator exposure in case of the processing of high potent products.

Designed for highly automated installations, GS EVOLUTION represents the ideal base for a contained plant. The machine reduces operator exposure in case of the processing of high potent products.

Coating (r)evolution.

GS EVOLUTION is a highly automated solid wall pan for tablet film and sugar coating, which also produces pellets and microgranules via powder layering. The machine can be supplied with different levels of automation depending on the customer’s requirements.

IMA Active
settings_applications Production Plant
IMA Active

GS EVOLUTION Highlights

1.
Perfect mixing and uniform distribution of coating material thanks to the shape of the pan and surface smoothness.
2.
Patented drying system.
3.
Different paddle sizes for higher flexibility in terms of pan working capacities.
4.
Two pan types available: standard or spiralled for automatic product and water discharge.
5.
Complete isolation of the processing area by means of inflatable seals on front and rear doors.
The automatic and easy-to-validate cleaning cycle can start immediately after production without the installation of any additional device. Water can be discharged through the hole placed in the pan bottom or through the high efficiency discharging spiral.

Lab Version.

GS EVOLUTION Lab can be considered not only as a laboratory coater but also as a machine for small production batches. Three interchangeable drums are available to work with a wide range of capacities. A high degree of automation ensures that easy operations and maintenance procedures can be applied.

GS EVOLUTION Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA GS EVOLUTION
Model GS 30*** GS 70 GS 150 GS 300 GS 450 GS 600 GS 800
Minimum/maximum working capacity (l)*  0.5÷30 40÷70 70÷150 150÷300 200÷450 350÷650  450÷850
Pan diameter (mm)  820 1,050 1,280  1,580 1,630  2,000  2,200
Pan mouth diameter (mm)  300 400 450 520   730
Pan motor power (kW)  0.55 1.1 1.5  3 4 5.5 7.5
Process air delivery (m³/h) 350 1,000 1,400 2,500 3,000 4,000 5,000
Power consumption for standard equipment (kW)** 14 10 12 20 25 30 35
* Approximate data (depending on core shape and specific weight)
** Approximate data (depending on equipment configuration)
*** Interchangeable drum

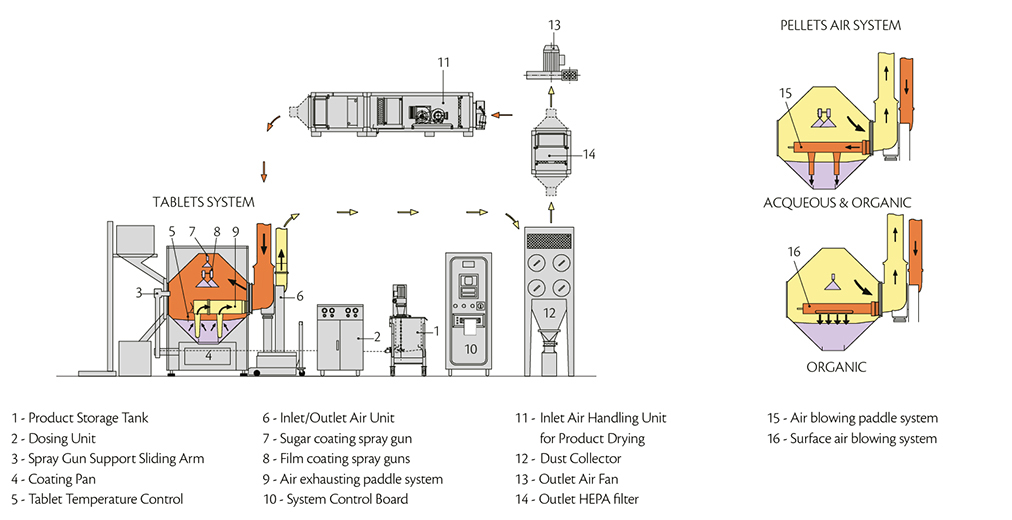

GS EVOLUTION Layout

GS EVOLUTION Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Film coating
search
Front door
search
Spiralled pan
search
Product exit
search
Exhausting paddles
