FTC Series
Vertical Dosing & Filling Machines

Medium- to high-speed vertical dosing and filling machines for cartons, plastic and metal containers of various types and sizes, with dispensers or top opening, pressure or screw caps, to meet all of your requirements, in a mono-block platform.

Medium- to high-speed vertical dosing and filling machines for cartons, plastic and metal containers of various types and sizes, with dispensers or top opening, pressure or screw caps, to meet all of your requirements, in a mono-block platform.

Wide format range and extreme flexibility
in closure styles

IMA Gima vertical dosing and filling FTC Series can manage soft and rigid containers such as cartons, bottles, tins and jars with cylindrical, square and irregular shape.

Our dosing systems, such as slat or electronic counting, volumetric or weighing systems, are the result of 20 years’ experience in the confectionery industry with hundreds of filling units supplied worldwide. Every kind of product shape and type in Confectionery and Nutraceutical markets, can be handled:  from capsules and tablets to hard and soft candies, gums, coated sweets, liquorice, sweeteners, nuts, dried fruit, etc.

The machines are designed for modular configuration, with fully accessible equipment design, which allows easy implementation or additional feeding systems, printers and quality control units.

IMA Gima
settings_applications Production Plant
IMA Gima

FTC Series Highlights

1.
Extremely versatile machines that handle most product types, and in different formats.
2.
Wide format range and extreme flexibility in closure styles.
3.
Clean design, compact footprint, full accessibility with ergonomic operating position.
4.
Easy, operator-friendly format changeover, with adjustment through mechanical references.
5.
Turnkey lines, from the pack design phase through to end-of-line equipment.

Product output options preview

keyboard_arrow_left keyboard_arrow_right
  • Technical Data
  • Machine Layout
FTC SERIES – CARTONS
  Carton Blank



Production Speed
[ppm]

A
(width)
B
(depth)

C
(heigh)

A+B flap
FTC509 & FTC 517 Min 25 11 55 36

FTC5017: up to 450
FTC609: up to 300

Max 70 30 102 102 20
FTC 509 & FTC 517 extended eight Min 25 11 55 36
Max 70 30 102 102 20
FTC 578 pitch 120 mm Min 20 20 40 40 20 300
Max 90 90 140 (240) 180 106
FTC578 pitch 180 mm Min 60 30 40 90 30 200
Max 150 120 260 240 120



FTC SERIES – RIGID CONTAINERS (plastic or metal)
  A (width) B (depth) C (height) Production Speed
[ppm]
FTC509 Min 25 11 55 300
Max 70 70 105
FTC517 Min 25 11 55 450
Max 70 70 105

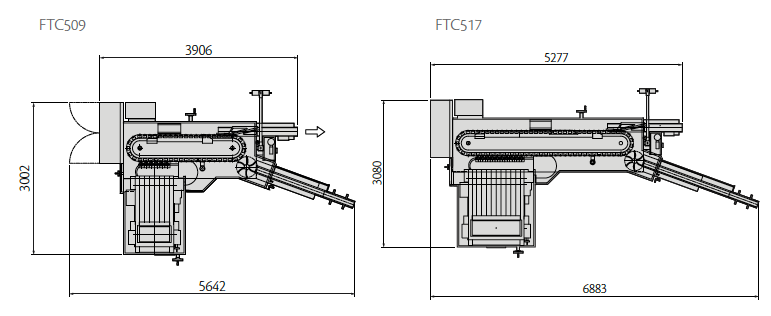

FTC Series Layout
