CANGURO
Bin tumbler

Smart design, prime performance, enduring reliability. CANGURO’s compact GMP design makes blending smooth and highly efficient, achieving outstanding results with little maintenance.

Smart design, prime performance, enduring reliability. CANGURO’s compact GMP design makes blending smooth and highly efficient, achieving outstanding results with little maintenance.

Blending made easy for you.

CANGURO is a very compact bin tumbler designed for blending and homogenizing powders and granules.

The machine is equipped with an over-rotation feature for product levelling inside the IBC. The rotation speed can be adjusted according to specific requirements.

IMA Active
settings_applications Production Plant
IMA Active

CANGURO Highlights

1.
High productivity ensured by hermetically closed IBCs: different products can be blended without the need for decontamination.
2.
Single arm frame for easy bin positioning and blocking.
3.
Double 15° inclination angles for high-efficiency blending and over-rotation feature for product levelling inside the bin.
4.
Designed for through-the-wall installation to save space in the processing area.
CANGURO is designed with a single-arm frame and with a horizontal cradle for easy bin positioning and blocking. The cradle has double 15° inclination angles, ensuring more efficient blending.
  • Technical Data
  • Machine Layout
CANGURO TECHNICAL DATA
Model CANGURO 1200 CANGURO 1200 ER
Bin series 1,200
Capacity of standard containers (litres) 600÷1,500/1,300÷2,200 600÷2,200
Recommended filling coefficient 30÷75%
Maximum working load: bin + product (kg) 2,000
Rotation speed (rpm) 4÷20
Power supply 400 V @ 50 Hz – 3 phase AC
Electric power installed (kW) 20.3 22.1
Maximum electric power absorbed (kW) 15 18
Empty machine weight (kg) 4,500
Full-load machine weight (kg) 5,500/6,500 6,500
CANGURO DIMENSIONS
A (mm) 3,800 3,800
B (mm) 3,800
C (mm) 3,800
D (mm) 120

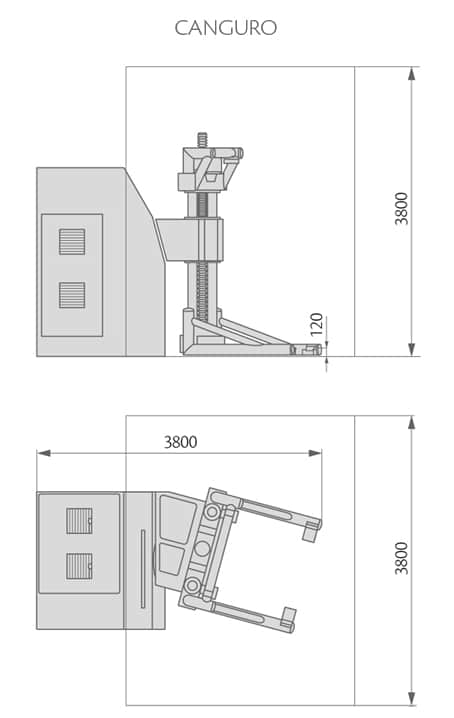

CANGURO Layout

CANGURO Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Single-arm frame
search
Bin positioning
search
Bin blocking
