BDS
Bag dumping station

Simple design, reduced dimensions, accurate finishing. These key features make BDS a versatile accessory for the optimisation of powder and granules handling in the pharmaceutical industry.

Simple design, reduced dimensions, accurate finishing. These key features make BDS a versatile accessory for the optimisation of powder and granules handling in the pharmaceutical industry.

Safety in containment.

The BDS Bag Dumping Station for powders or granules is designed for discharging bags and small containers in contained conditions, reducing the contamination level of the working environment.

Thanks to its front port and bottom outlet in dust-tight conditions, BDS can be easily integrated with the loading and unloading devices of the Pharma Handling Systems.

IMA Active
settings_applications Production Plant
IMA Active

BDS Highlights

1.
Internal parts manufactured in AISI 316 stainless steel, mirror polished.
2.
Easy cleaning thanks to smooth finishing without dead corners.
3.
Large front opening to enable perfect accessibility during loading operations.
4.
Clamped connection provided to the bottom outlet for installation of a butterfly valve or a pneumatic transfer hopper.
  • Technical Data
  • Machine Layout
TECHNICAL DATA BDS
Vacuum 50 m³/h –  20 mbar
Maximum installed power (kW) 1
Standard voltage 400 V – 50 Hz
Water consumption 26 litres/minute – 3 bar
Tools compressed air 600 Nl/min – 5 barg

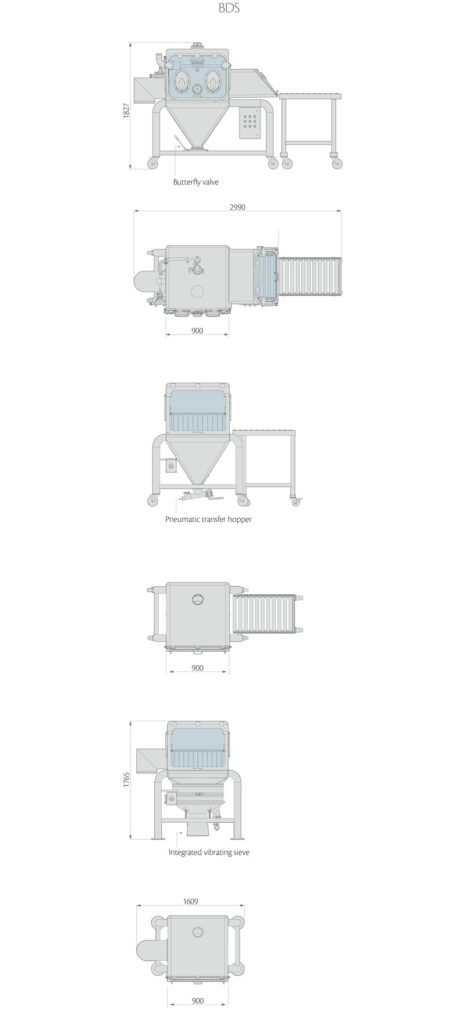

BDS Layout

BDS Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Glove area
search
Glove area
search
Washing lance
search
Bag inlet
