TLS
Tray loading system for plastic tray

Top loading system designed to place one or more products inside the same container, with the advantage that the end consumer can easily see the contents of the pack.

Top loading system designed to place one or more products inside the same container, with the advantage that the end consumer can easily see the contents of the pack.

High-speed loading system for demanding situations.

Based around a 4 or 6-axis robot which picks up incoming products and loading them inside a plastic tray. Trays are width-drawn from tray magazines and transferred up to the loading area.

Dedicated Infeed system are available to manage tubes arriving on several lanes as well as roll-on coming into pucks.

Modular design allows for customisation of the empty trays magazines section, whose dimensions are kept to a minimum.

TLS is an ideal choice for handling trays of toiletries in the high-speed cosmetics industry.

IMA BFB
settings_applications Production Plant
IMA BFB

TLS Highlights

1.
PLC unit interacts with robot processor for straightforward operation.
2.
Transparent panels interlocked with safety switches and light curtains in the pallet removal area increase overall safety.
3.
Modular design on tray magazines area.
4.
Pre-arrangement for shrink-wrapper integration.

TLS Gallery

keyboard_arrow_left
keyboard_arrow_right
search

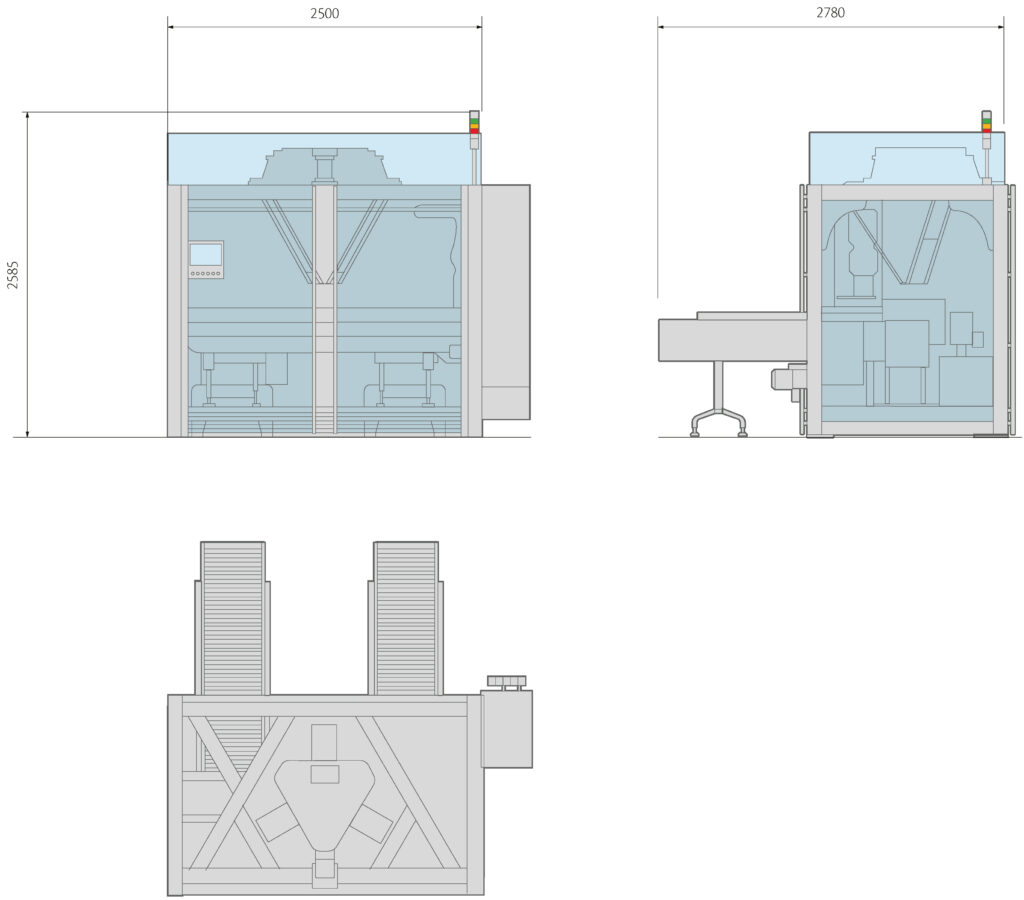

General overview
search
Tray pick&place
search

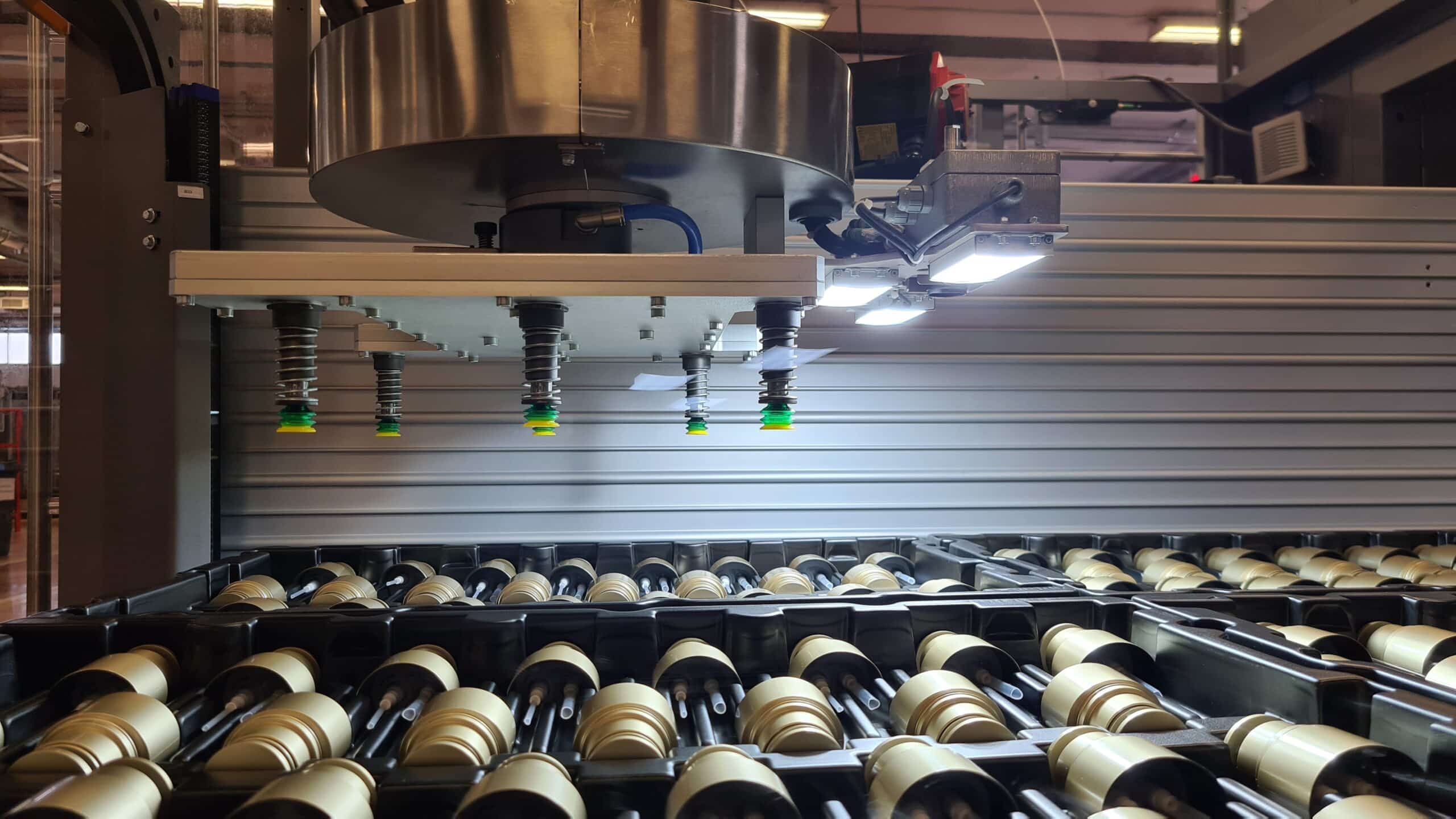

Product insertion into tray
search
Product exit
