KAPPA
Horizontal intermittent motion sachet machine

KAPPA Series is simply the highest expression of flexibility. These machines have been conceived to be fully customised according to customer requirements: huge range of sachet configurations handled, products and accessories fed, sachet sizes covered.

KAPPA Series is simply the highest expression of flexibility. These machines have been conceived to be fully customised according to customer requirements: huge range of sachet configurations handled, products and accessories fed, sachet sizes covered.

Simply the highest expression of flexibility

The machine is divided into two modules:
• A linear module which includes the following production functions: sachet vertical sealing,
coding, corners rounding, film pulling and single sachet cutting.
• A rotating module which includes 8 stations to dose one or more products and subsequent
sachet sealing. With this configuration, dosing is performed away from the sealing areas where
the temperature is high, so there is no risk of product heating.

This structure allows extreme compactness even if different dosing systems are installed.

nature_people

Sustainability

KAPPA machines are designed so that the production process involves minimal environmental impact:

  • energy consumption is reduced to a minimum,
  • the waste materials are minimized,
  • compatibility with the use of recycled materials.
Perfect Pack
settings_applications Production Plant
Perfect Pack

KAPPA Highlights

1.
High flexibility in terms of sachet configuration, including special applications
2.
Different kinds of dosing systems available
3.
Wide range of sachet sizes covered
4.
Patented systems to reduce the size changeover times to the minimum
5.
Hybrid design that allows complete accessibility and a compact footprint
KAPPA machines are able to handle any kind of sachet configuration, including special applications: three-side sealing, four-side sealing, doypack (stand up), sachet with shaped head, bag-on-valve, sachet with zip or with cap.

VERSIONS

KAPPA machines are available in different versions and configurations according to the product characteristics.

Machine versions:

  • KAPPA 400
  • KAPPA 620 for sachets with big dimensions

Machine configurations:

  • Configuration for dense and semi-dense products
  • Configuration for powders, free and not free flowing products
  • Configuration for fluid products
  • Configuration for tablets and capsules

Special applicators:

  • Zip
  • Cap
KAPPA Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA KAPPA 400
Width (mm) Length (mm) N. Lanes Production output
100-200 70-180 1 Up to 140 sachets/min.
50-110 2



TECHNICAL DATA KAPPA 620
Width (mm) Length (mm) N. Lanes Production output
100-200 70-240 1 Up to 140 sachets/min.
50-125 2

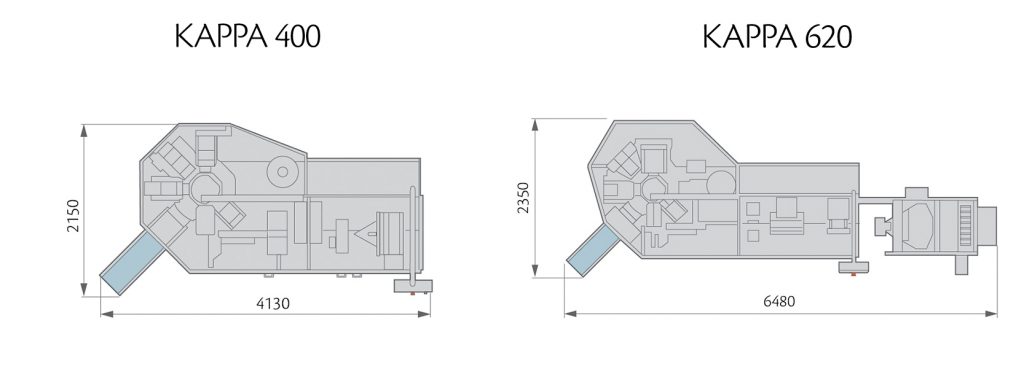

KAPPA Layout

KAPPA Gallery

keyboard_arrow_left
keyboard_arrow_right
search

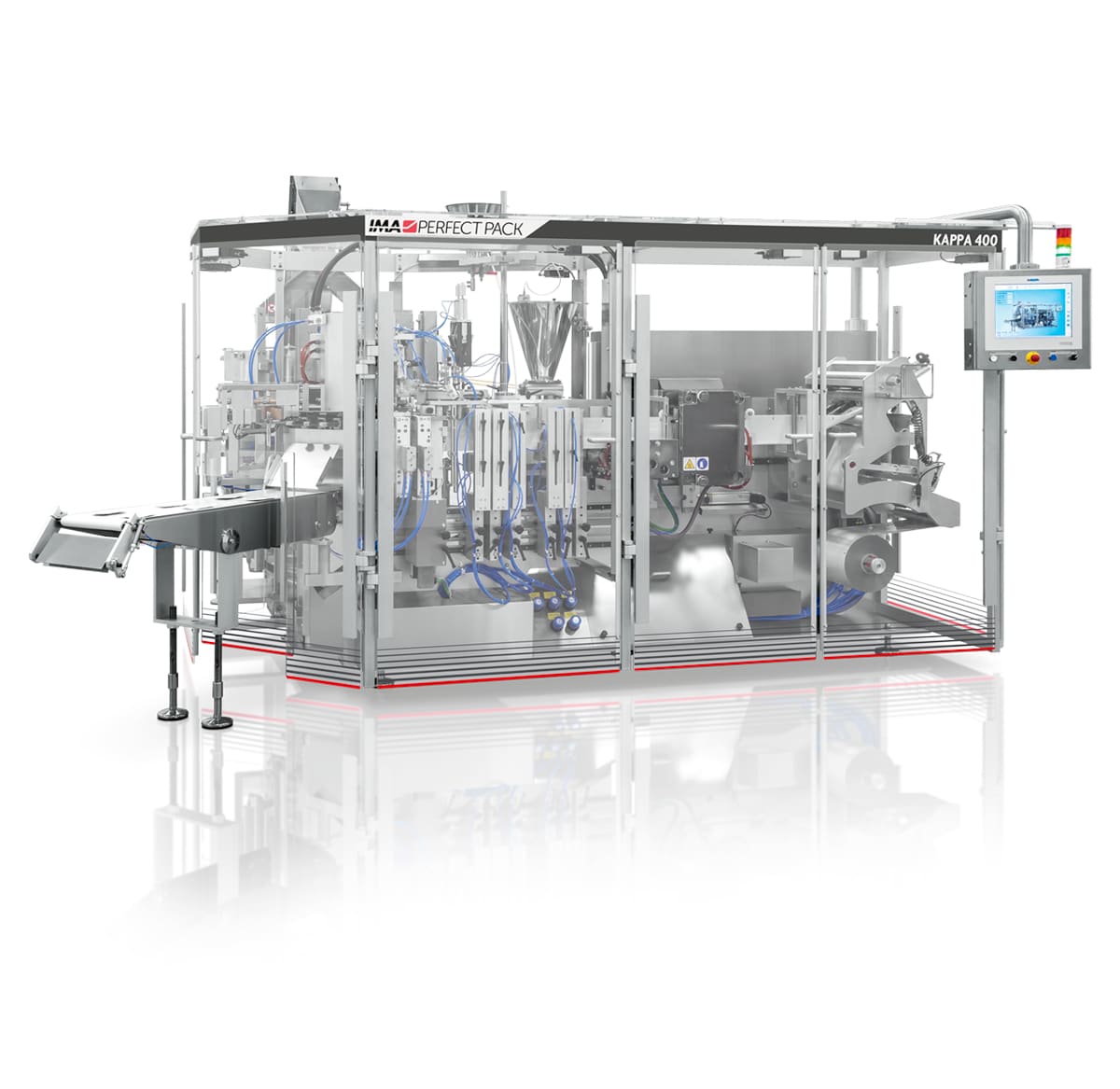

KAPPA 400 - Configuration for dense and semi-dense products and cap packaging
search
KAPPA 620 - Configuration for powder and zip packaging
search
Doser with pistons for dense and semi-dense products
search

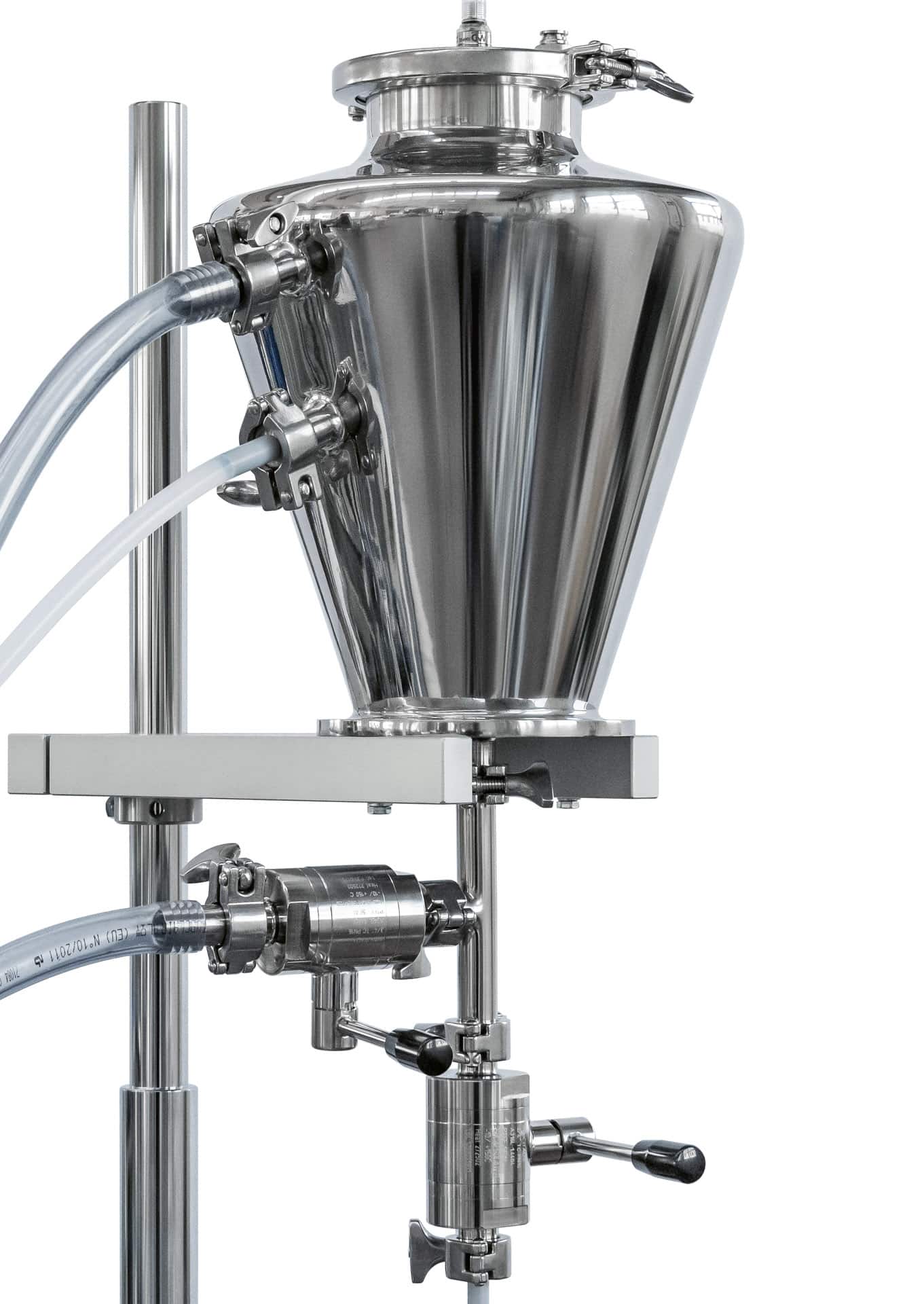

Gravimetric doser for fluid products
search

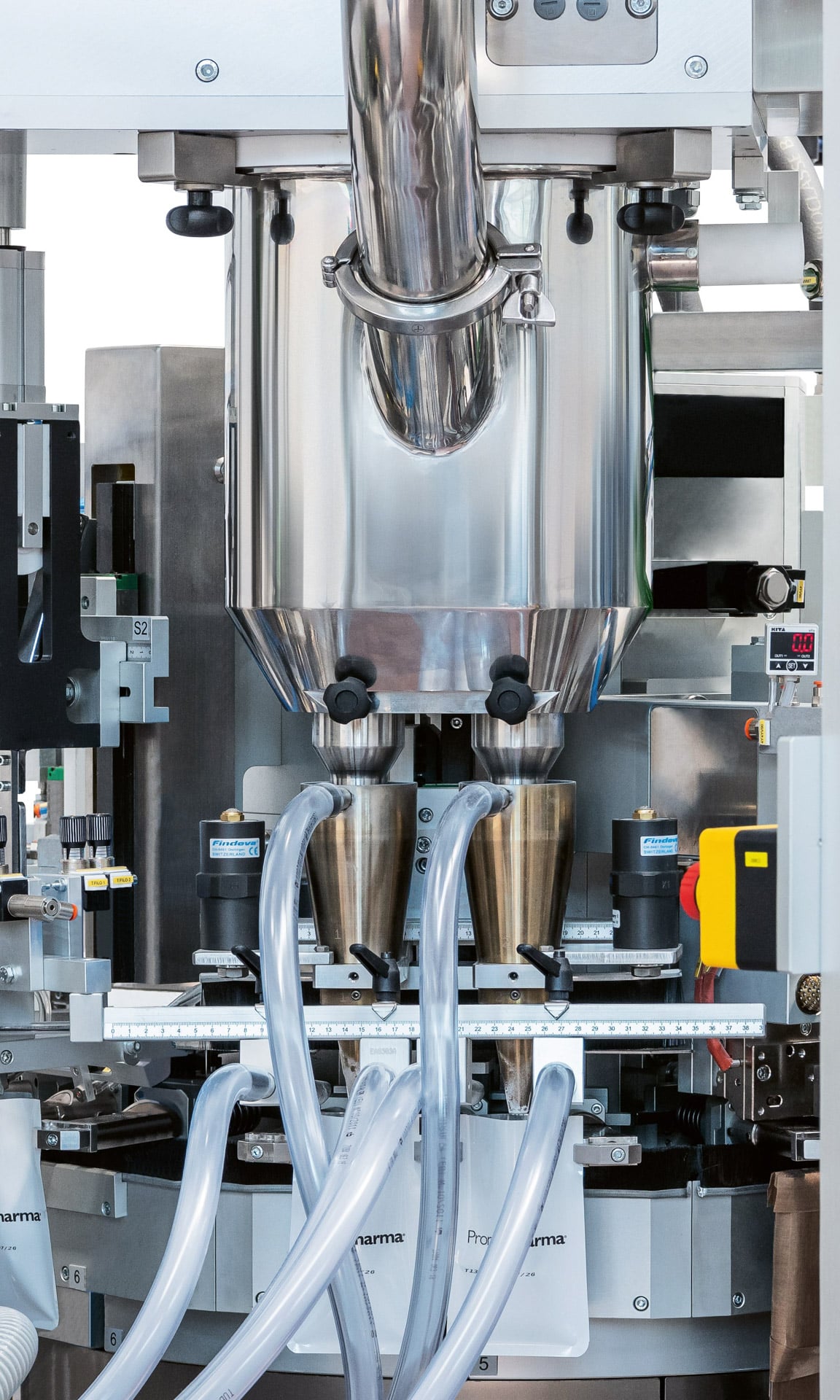

Auger doser for powders, free and not free flowing products
search
Feeder for tablets and capsules
search
Feeder for caps
search
Feeder for zips
