FTC578-C
Vertical Cartoning

An ideal complement to high-speed filling equipment or buffering systems granting excellent line efficiency, the compact FTC578-C vertical cartoner is designed to enable huge machine configuration flexibility and later implementation of a liner system

An ideal complement to high-speed filling equipment or buffering systems granting excellent line efficiency, the compact FTC578-C vertical cartoner is designed to enable huge machine configuration flexibility and later implementation of a liner system

High-speed handling and maximum modularity

Capable of receiving products with or without pucks and handling up to 300 ppm, the FTC578-C is designed for modularity configuration as well as high-speed operation.

Thanks to its fully accessible design, implementation of additional feeding systems, printers and quality control units is simple. Main functions are servomotor-driven and allow for very short changeover times by means of PC panel recipes.

Data collection software, troubleshooting, a maintenance programme and remote assistance are all available via the PC panel for operators and supervisors. According to product behaviour or functionality needs, the FTC578-C can run with continuous or intermittent motion.

IMA Gima
settings_applications Production Plant
IMA Gima

FTC578-C Highlights

1.
Ergonomically located, high-capacity carton magazine with operator-friendly function.
2.
Product handling with or without pucks; feeding by pick and place or robotic system.
3.
Modular liner unit equipped with multiple, high-capacity horizontal magazines.
4.
Fast and user-friendly format changeover, supported by servo-assisted PC panel recipe.
5.
Can integrate feeding system for leaflet/booklet and additional components, by modular units.
6.
Fully flexible for different types of closure styles.
7.
Remote electrical cabinet for full access to machine functions and highly suited to on-line layout.
Race the market, pack with style.
  • Technical Data
  • Machine Layout
TECHNICAL DATA FTC578-C
Carton range   Min. Max.
A 20 90
B 20 90
C 40 140
Production Up to 300 ppm
Installed power 7 kW (standard version)
Operating pressure 6 bar
Maximum air consumption 80 Nl/min.
Weight 3,600 Kg (standard version)

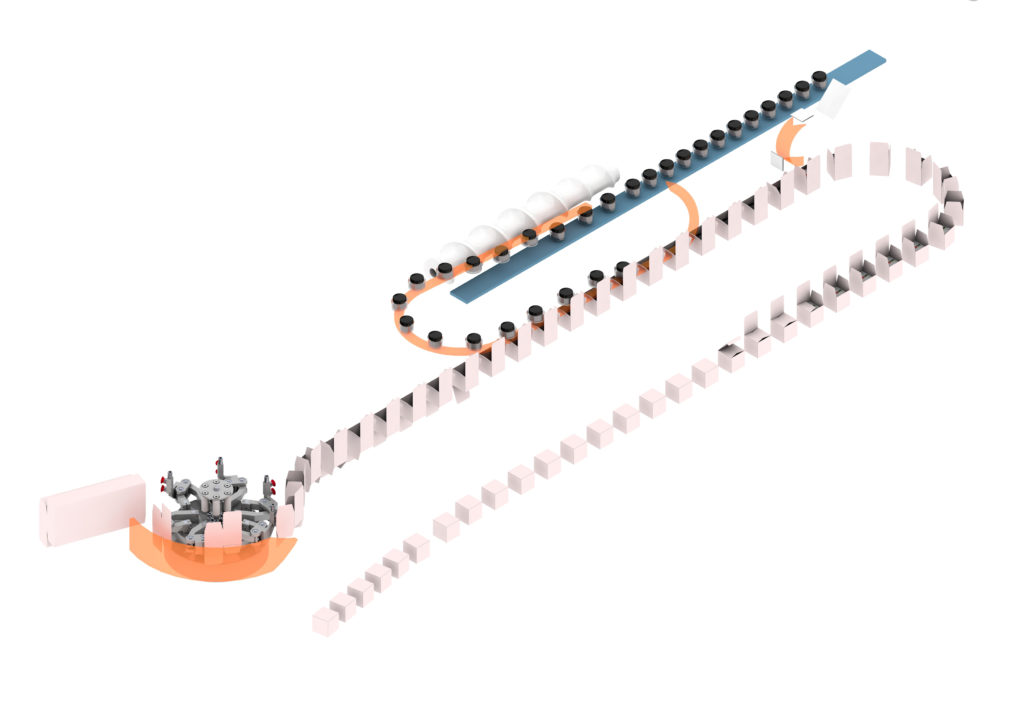

FTC578-C Layout FTC578-C Layout FTC578-C Layout

FTC578-C Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product picking carousel
search
Jars pick & place
search
Jars deposit
search
Carton rotating picking turret
search
Product insertion
search
Carton top folding
search
Product outfeed
