CPV20
Top-loading case packing

A modular top-loading case packer for loose or bundled bottles and cartons, the CPV20 has been designed to offer unrivalled flexibility. Processing at medium to high speeds, it can also incorporate special modules to add medication guides to each carton.

A modular top-loading case packer for loose or bundled bottles and cartons, the CPV20 has been designed to offer unrivalled flexibility. Processing at medium to high speeds, it can also incorporate special modules to add medication guides to each carton.

Unrivalled flexibility in a case packing machine.

Attention to ergonomics and undeniable flexibility are the primary characteristics of this case packer. A top-rate solution for the personal care industry, the CPV20 handles a variety of bottle shapes and single cartons. Up to 20 cases/minute can be processed, offering excellent productivity.

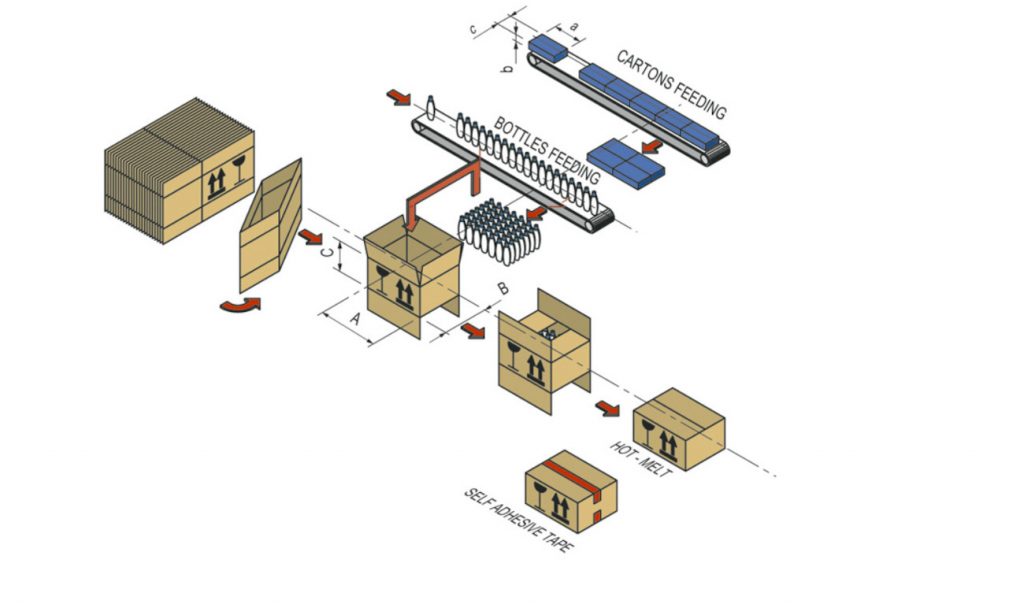

Two independent chains feed regular flowing blanks to the erection stations where they are positioned with precision. Once opened the cartons are filled and transferred  to the closing zone, fitted as a separate module and enabling hot-melt glue or adhesive tape closure.

Thanks to the modular concept at the heart of the CPV20, special modules can be incorporated to handle additional items needing to be packed with the product.

IMA BFB
settings_applications Production Plant
IMA BFB

CPV20 Highlights

1.
Wide variety of product types handled: bundled or loose bottles and single cartons.
2.
Modular design accepts integration of special modules for special requirements.
3.
Regular flowing blanks and accurate positioning for maximum production efficiency.
4.
By pass possible for IPC (in-process control).
5.
Cases can be closed with adhesive tape or with hot-melt glue.

CPV20 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Case magazine
search
Case loading area
search
Case withdrawing
search
Product pick & place
search
Case closing
search
Case closing detail
search
Booklet option
search
Case exit
