CP50
Side-loading case packing

The CP50 is a high-speed side loading case-packing machine specifically designed to handle small dimensioned cases at high speed, benefiting from operator-friendly cantilever design ensuring complete accessibility and easy cleaning.

The CP50 is a high-speed side loading case-packing machine specifically designed to handle small dimensioned cases at high speed, benefiting from operator-friendly cantilever design ensuring complete accessibility and easy cleaning.

High speed side loading case packing machine.

Great importance has been given to the ergonomic position of all its components.

All the parts on CP50  can be reached from the operator’s side without having to walk to the opposite side to reach carton stacking unit area. In order to be as “operator friendly” as possible the case erecting mechanism of this machine has been designed to ensure extremely low positioning of the horizontal case magazine. This guarantees long autonomy.

As dictated by the most modern requirements of technology, the CP50 is entirely driven by servo-motors which means dedicated strokes and motions for each specific application. Servo technology and innovative solutions allow the machine to achieve a very high speed (up to 50 cases/min.) with smooth product handling and compact footprint.

The case is erected and placed in a toothed chain where it is loaded. Cases are closed with hot-melt glue. The machine also features a standard PLC unit. The CP50 is fully guarded by full size transparent panels interlocked with safety switches in order to meet CE requirements.

IMA BFB
settings_applications Production Plant
IMA BFB

CP50 Highlights

1.
Size change-over without use of tools, as optional.
2.
Case labelling and label verification as optional.
3.
Case rejection at discharge as optional.
4.
Case overturning at discharge, as optional.
  • Technical Data
  • Machine Layout
TECHNICAL DATA CP50
Compressed air 6 bar
Absorbed 29.4 A
Installed power 16.5 kW
Air pressure 6 bar
Air consumption 250 Nl/min.
Net weight 2,950 Kg
Supply voltage 400 ± 10% 50 Hz IT
Product dimensions A B C
Min. 120 80 130
Max. 320 160 220
Max Speed 50 Cases/min.

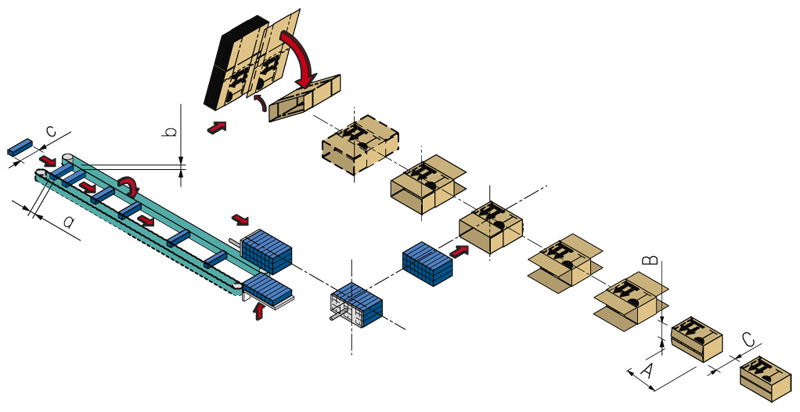

CP50 Layout CP50 Layout
