CP38
Side-loading case packing

Specifically designed to handle loose or bundled cartons, the CP38 is a high-speed, side-loading case packer benefiting from operator-friendly cantilever design ensuring complete accessibility and easy cleaning.

Specifically designed to handle loose or bundled cartons, the CP38 is a high-speed, side-loading case packer benefiting from operator-friendly cantilever design ensuring complete accessibility and easy cleaning.

High-speed case packing with unrivalled operator ergonomics.

The only case packer on the market where all the parts of the machine can be reached from the operator’s side without having to walk to the opposite side to reach the carton stacking unit, the CP38 is ideal for handling cosmetics and toiletry items.

Using servo technology for extremely smooth product handling, the CP38 packs up to 30 cases/min and has a compact footprint. During loading, the case is erected and held in position on 2 sides enabling effective use of lower-quality corrugated cardboard.

The case erecting mechanism now ensures extremely low positioning of the horizontal case magazine, thus increasing machine autonomy.

IMA BFB
settings_applications Production Plant
IMA BFB

CP38 Highlights

1.
Tool-free size changeover assisted by large, easy-to-use HMI, for increased speed and simplicity.
2.
Cases can be closed with adhesive tape or hot-melt glue.
3.
Full-size transparent panels interlocked with safety switches in order to ensure operator safety, compliant with European Standards.
4.
Options include case labelling and checking, case rejection at discharge and case overturning at discharge.
  • Technical Data
  • Machine Layout
TECHNICAL DATA CP38
Compressed air 6 bar
Installed power 8 kW
Gross weight 2,900 Kg
Product dimensions A B C
Min. 140 80 60
Max. 500 350 350
Max. speed Up to 30 Cases/min.

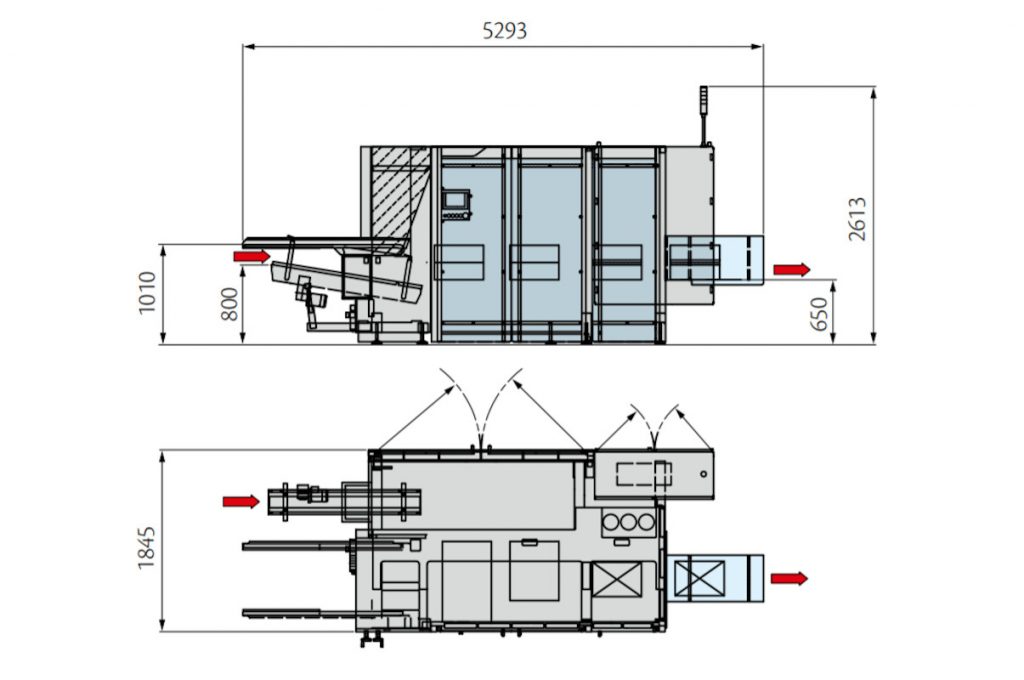

CP38 Layout CP38 Layout

CP38 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Case magazine
search
Case forming unit
search
Case forming detail
search
Flap closing unit
search
Flap closing detail
