ROTO MIX
High Shear Mixer Granulator

ROTO MIX is the latest generation high shear granulator. Inspired by the consolidated Roto technology existing since the 1980s, ROTO MIX ensures the optimum shear for granulation at all speeds.

ROTO MIX is the latest generation high shear granulator. Inspired by the consolidated Roto technology existing since the 1980s, ROTO MIX ensures the optimum shear for granulation at all speeds.

Granulation at its best.

ROTO MIX is a high shear mixer granulator designed for the dry mixing of powders and wet granulation. Mixing and agglomeration of powder particles is achieved by the combined action of impeller, chopper and liquid binder distributor. Available in a through-the-wall version, ROTO MIX optimises the room layout and fits seamlessly into solid dose processing lines.

IMA Active
settings_applications Production Plant
IMA Active

ROTO MIX Highlights

1.
Unique impeller design to prevent product sticking and maximise product yield.
2.
Through-the-wall installation and easy integration with other granulation equipment.
3.
In-line dry milling for wet granule sizing and direct transfer to a fluid bed dryer.
4.
Wash In Place performed by washing nozzles strategically positioned to wash even the most difficult-to-clean areas.
5.
Dust-free process, safe use of solvents and reduced risk of contamination.
ROTO MIX impeller provides the appropriate movement to achieve the highest mixing and agglomeration efficiency. Its unique design prevents the product from sticking and maximises product yield.
  • Technical Data
  • Machine Layout
TECHNICAL DATA ROTO MIX
Model 60 120 300 600 900 1200 1500 2500
A (mm) 1,380  1,720  2,180 2,430 2,620 2,750  2,850 3,500
B (mm) 1,520   1,620  2,000 2,400 2,650 2,700  2,830 3,020
C (mm) 870  1,060 1,240 1,300 1,340
D (mm) 850 1,050 1,315 1,500 1,700 1,800 1,900 2,240
E (mm) 2,120 2,220 2,600 3,070 3,320 3,370 3,490 3,890
Bowl capacity (l) 60 120 300 600 900 1,200 1,500 2,500
Working capacity (l) Minimum 25% – Maximum 70%
Impeller power (kW) 4 11 18.5 30 45 55 75 115
Impeller speed (rpm) 15-275 15-220 10-165 10-130 10-115 10-100 10-97 6-82
Chopper speed (rpm) 700-1,450 (up to 2,000 with frequency converter)
Weight (kg) 500 1,200 2,000 2,750 3,200 3,500 4,000 7,000

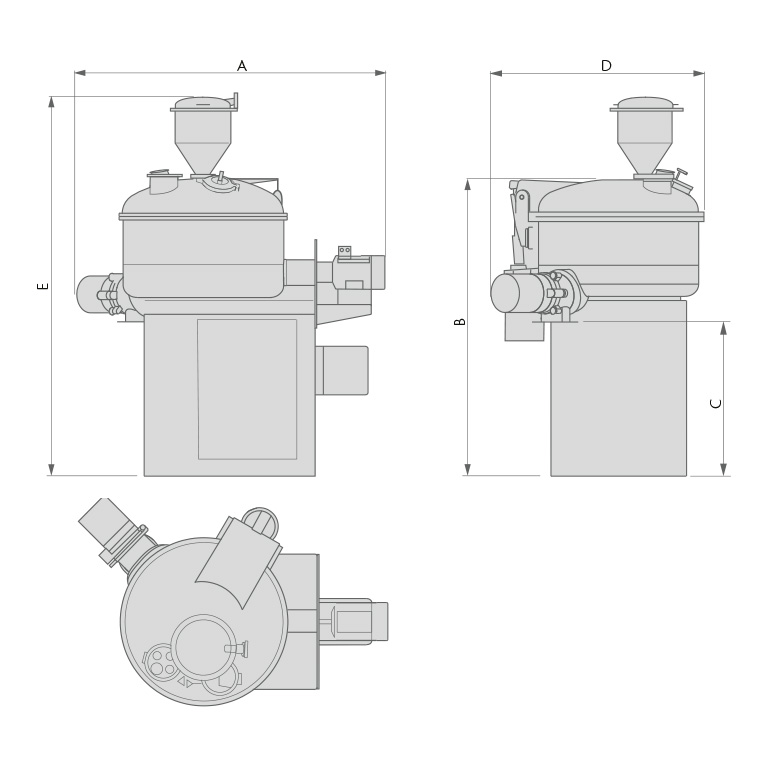

ROTO MIX Layout

ROTO MIX Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Chopper
search
Impeller
search
Liquid binder distributor
search
Washing nozzle
search
Discharge
