MODULA
Pouch filling

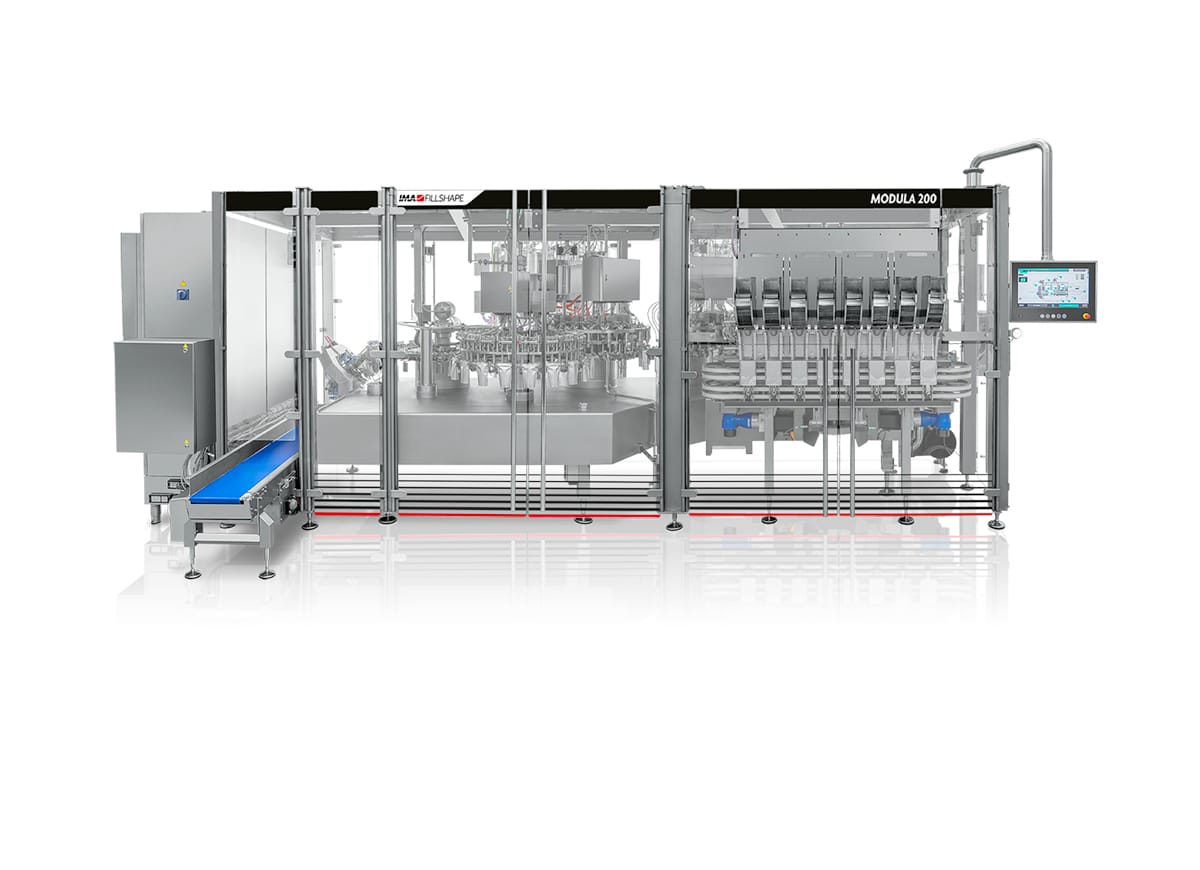

Modula is a continuous rotary machine that fills and ultrasonically seals pre-made pouches using a patented “double pick-up” system. Ideal for solid, liquid and high-viscous products, Modula is very versatile and offers high-speed changeover procedures

Modula is a continuous rotary machine that fills and ultrasonically seals pre-made pouches using a patented “double pick-up” system. Ideal for solid, liquid and high-viscous products, Modula is very versatile and offers high-speed changeover procedures

Accurate, Reliable, Modular

Suitable for different filling applications such as food, pet food and beverages, where high hygienic standards, huge flexibility, and rapid changeover procedures are key factors on a competitive market, Modula ensures ultimate filling accuracy and sealing reliability and boasts an extremely low rejection rate.

Furthermore, the patented “double pick-up” system avoids the use of chains for pouch handling.

The modular structure enables customers to use a large variety of pouch shapes and create customised solutions for a vast range of products.

IMA Fillshape
settings_applications Production Plant
IMA Fillshape

Modula Highlights

1.
Size changeover carried out in just 20 minutes (120 ppm version): optimise productivity and adapt to fast-changing market requirements
2.
High hygienic standards thanks to the frameless design and separation between pouch making and filling areas
3.
Customers can adapt existing can-filling technologies to rotary pouch filling
4.
Space saved on the production floor thanks to reduced footprint given by rotary design

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Unspouted pouch
  • Technical Data
  • Machine Layout
TECHNICAL DATA MODULA
Machine model Station Pouch width (mm) Pouch height (mm) Pouch per minute
Magazine Opening Filling Sealing
Modula 240 8 16 16 2 65-160 80-250 200
Modula 480 16 24 24 4 65-160 80-250 400

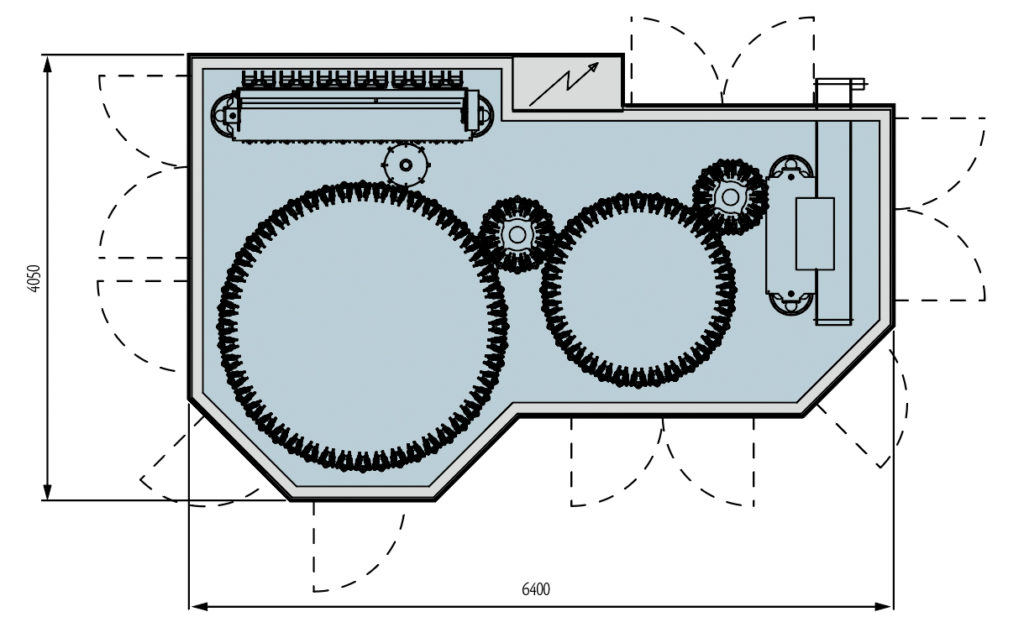

Modula Layout
