KOMPAKTA
Pouch making

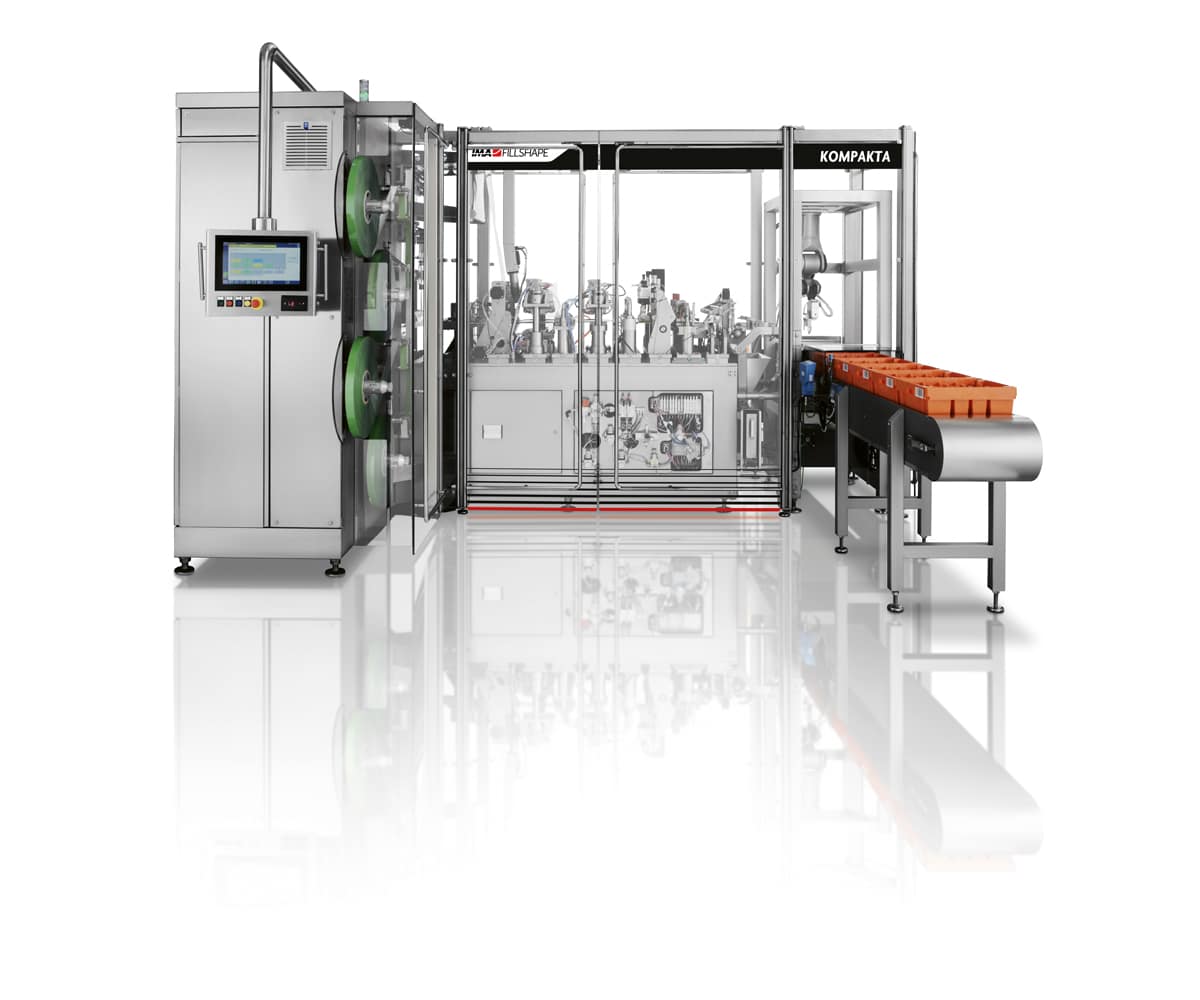

Kompakta is a linear machine that creates stand-up pouches from pre-printed reels. Customers enjoy maximum freedom to create the pouch shape of their choice and can produce pouches in a variety of sizes

Kompakta is a linear machine that creates stand-up pouches from pre-printed reels. Customers enjoy maximum freedom to create the pouch shape of their choice and can produce pouches in a variety of sizes

Shape your pouch automatically

Loaded with two reels for the front and back of the pouch and several reels for the bottom, depending on pouch size, Kompakta automatically unwinds, punches and cuts the material on reels using blades and cutters, then sealing on 3 sides to obtain the finished pouch with a feed of 2, 3 or 4 pouches.

Size changeover takes just a few minutes; punching, cutting and sealing stations are easily replaced and their position is adjusted based on the index change.

Standard equipment will feature an end-of-line packer to arrange the pouches in rows and subsequently inserting them into boxes or trays.

IMA Fillshape
settings_applications Production Plant
IMA Fillshape

Kompakta Highlights

1.
High-speed reel replacement for increased productivity
2.
Automatic identification and rejection of splicing
3.
Simple and fast size changeover for greater variety and creativity

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Pouch
  • Technical Data
  • Machine Layout
TECHNICAL DATA KOMPAKTA
Nominal Production speed: 400 ppm
Pouch height range From 100 to 200 mm
Pouch width range From 70 to 150 mm
Pouch Material Triplex, Quadruplex
Total installed power: 25 kW
Weight 2,000 Kg
Kompakta Layout

Kompakta Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Bottom punching
search
Bottom sealing and cooling
search
Side sealing
search
Cutting station and pulling
search
Side cutting, optional stacking unit
search
Optional tray loading unit
