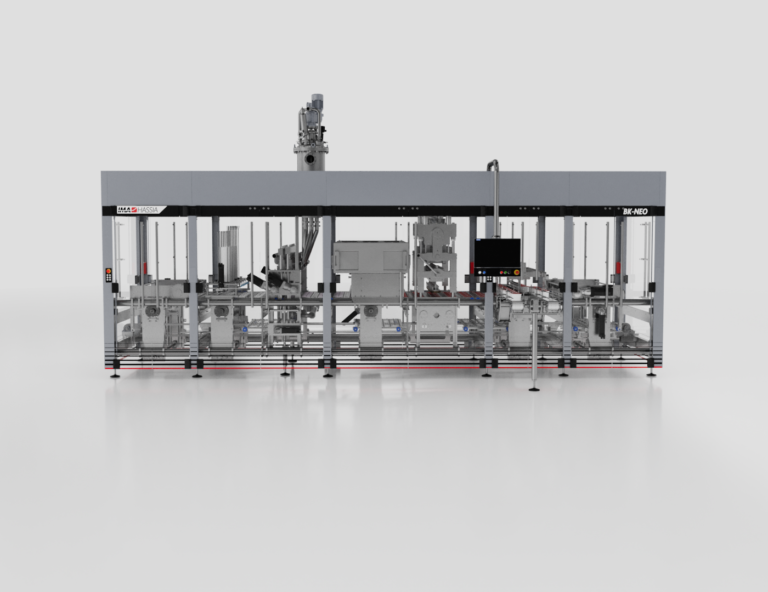

HAMBA BK-NEO
OPEN DESIGN, AUTOMATIC FORMAT CHANGE OVER

Chainless platform, modular design, format flexibility alongside Hassia/Hamba proven hygienic filling solutions for pre-formed cups and lidding materials.

Chainless platform, modular design, format flexibility alongside Hassia/Hamba proven hygienic filling solutions for pre-formed cups and lidding materials.

Modular design, format flexibility

In response to new market trends and a demand for superior flexibility, this filling and sealing machine covers the request for top-level hygienic conditions while maintaining their most versatile qualities in terms of cup or box size and shape as well as taking into account the processed product.

Depending on customer requirements, the machine can be individually adapted, e.g. with automated trolley change and multi-format operation. Washing the trolleys “on the fly” is done by cleaning during production without reducing machine performance and is thus one of the other outstanding options available.

IMA HASSIA

HAMBA BK-NEO Highlights

1.
Open design » Frame concept made of stainless steel » Good accessibility
2.
Modular machine » Individually adaptable to customer requirements
3.
Chainless transport system » Precise positioning of the trolleys » No chain wear
4.
Automated cell plate change » Multi format
5.
Washing of trolleys “on the fly” » Cleaning during production without reducing machine output » Washing program variable › All trolleys, specific trolley, short program, CIP program
6.
Single or double index operating platform
7.
Available with two pre-installed formats.
8.
Recipe functionality to control index speed to maximize product output.
The chainless solution for the cup transportation enables highest format flexibility in terms of container size and shape.

Products to be filled

All kind of liquid to pasty products such as plain or fruited yoghurt, fresh cheese, white cheese (curd), cottage cheese, single and multi-layer desserts, aerated mousse products, deli salads, dips, dressings, hot filled sauces, soups, jams, fruit purees, tomato paste, sweet spread, baby food, pet food, etc.
keyboard_arrow_left keyboard_arrow_right

Cup formats

A wide range of cup formats of pre-formed cups can be filled.
keyboard_arrow_left keyboard_arrow_right
  • Technical Data
TECHNICAL DATA HAMBA BK-NEO
Configuration Output (max.) Round cup (max. ø) Height (max.)
BK-NEO 1 – 4 9,600 cups/h 180 mm 150 mm
BK-NEO 1 – 6 14,400 cups/h 152 mm
BK-NEO 1 – 8 19,200 cups/h 116 mm
BK-NEO 1 – 10 24,000 cups/h 85 mm
BK-NEO 2 – 4 19,200 cups/h 130 mm
BK-NEO 2 – 6 28,800 cups/h 95 mm
BK-NEO 2 – 8 38,400 cups/h 95 mm
BK-NEO 2 – 10 48,000 cups/h 85 mm
BK-NEO 2 – 12 57,600 cups/h 70 mm

HAMBA BK-NEO Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Cup destacker
search
Filling
search
Lid application
search
Sealing
search

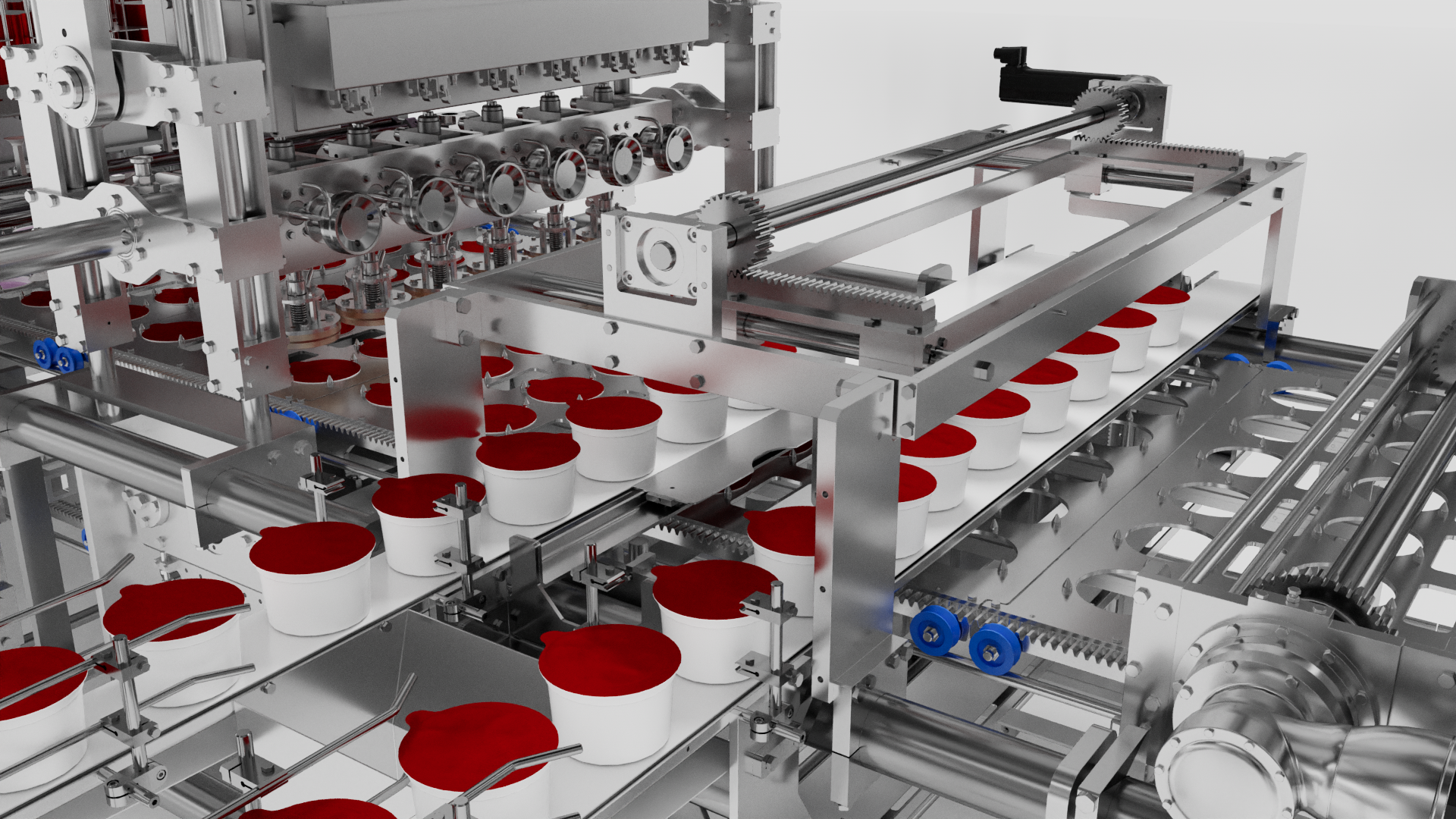

Cup transport
search
Cup discharge
search
Trolley station
