CD180
Automatic tubefiller

Comadis CD150/CD180 Family is manufactured to carry out demanding production. Suitable to fulfil different expectations – from large volume bulk production to reduced batches – and marked by efficiency, it’s a clear example of “value for money”.

An effective, accessible twin-nozzle tubefiller based on sturdy mechanical structure

Available from basic to individually tailored configurations (including fully robotized tube feeder), Co.Ma.Di.S. CD180 Family is capable to adapt itself to varied production environments.

Coming from outstanding experience, gained in the field, it really will be “meeting all needs”.

nature_people

Sustainability

Noise and vibration levels have been sensitively reduced.

IMA Safe
settings_applications Production Plant
Co.Ma.Di.S. S.P.A.

CD180 Highlights

1.
Choice of automatic/robotized tube feeders.
2.
Easy-to-disassemble dosing pump.
3.
Servo-controlled diving (or stationary) nozzle, with positive shut-off valve and cleaning by air blow.
4.
Customized “designer seals” on request.
5.
Quick interchangeability of closing heads.
6.
Simplified and easy change of size parts, without tools.
7.
Electrical cabinet integrated within machine footprint.
8.
Batch data collection – by pen drive – via USB port.
The tube loading station is based on a combined-motion smart assembly, designed to provide a reliable and smooth operation. Simple and compact, this device leaves room to the operator for cleaning and changeover operations, making all of its functions visible.
  • Technical Data
  • Machine Layout
TECHNICAL DATA CD180
Mechanical speed Up to 180 tubes/min.
Filling volume 2-250 ml. (on request up to 350 ml.)
Tube diameter 10-50 mm
Tube length 60-250 mm
Working stations 15

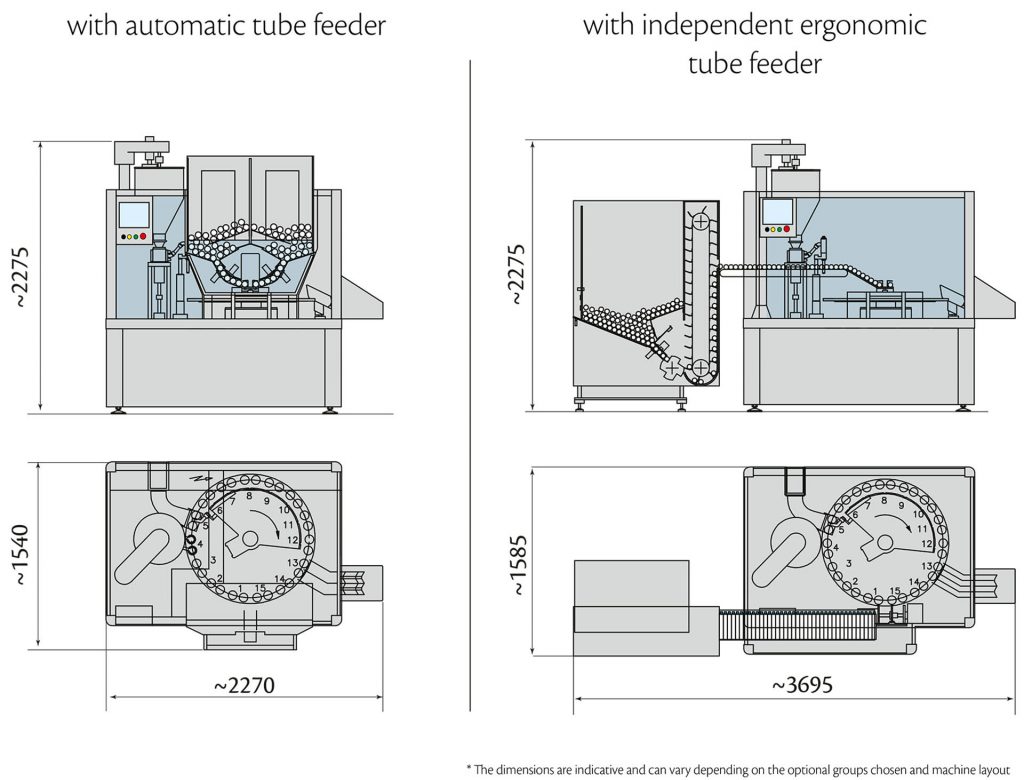

CD180 Layout

CD180 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
CD180 front view
search
Tube loading
search
Tube folder
search
Tube rejection station right after filling
search
Batch data collection via USB port
