ARIA
Fluid bed processor

Prime technology, intelligent design, enduring reliability. ARIA’s compact GMP design makes processing smooth and highly efficient, achieves outstanding results and requires little maintenance.

Prime technology, intelligent design, enduring reliability. ARIA’s compact GMP design makes processing smooth and highly efficient, achieves outstanding results and requires little maintenance.

The prime element in fluid bed processing.

ARIA allows drying, granulation, coating of cores with maximum reliability and ample flexibility. Designed for through-the-wall installation, ARIA is easy to integrate with other granulation equipment.

IMA Active
settings_applications Production Plant
IMA Active

ARIA Highlights

1.
Through-the-wall installation and easy integration with other granulation equipment.
2.
Different type of filters: bag filters, star-pleated or stainless steel cartridges.
3.
Complete accessibility to product filters for easy inspection and maintenance.
4.
Control of emissions: powder dedusting, absolute filtration, 12 bar Pressure Shock Resistance.
5.
ATEX compliant for safe use of potentially explosive powders.
Product bowls can fit different air distributors designed to achieve maximum product yield and optimal fluidisation. Air distributors can be easily washed in place and removed for inspection.

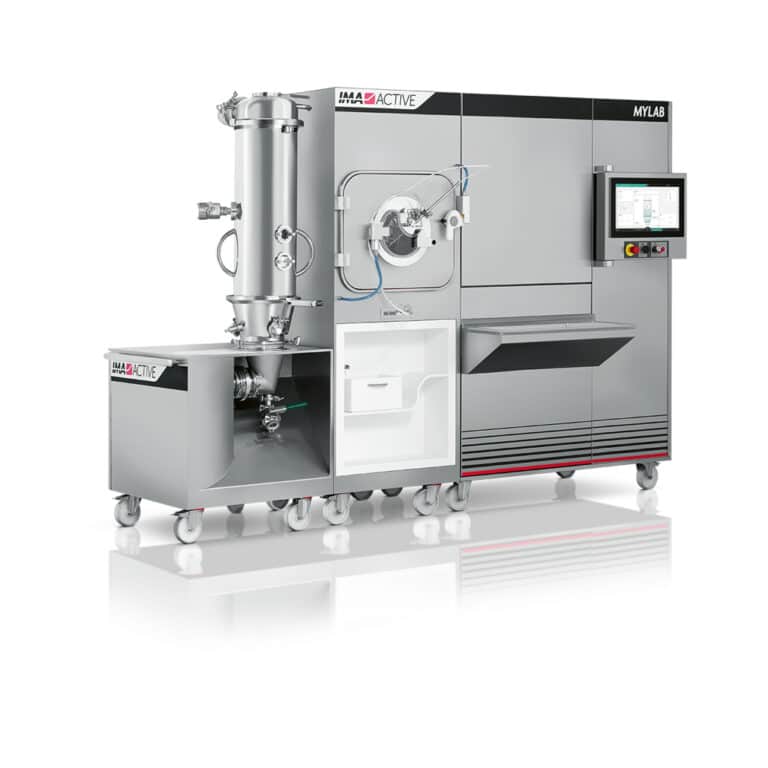

Lab Version.

MYLAB is a laboratory-scale fluid bed processor for R&D purposes, suitable for drying, granulation and coating of cores. The product containers can work batch sizes from 2 to 6 litres.

ARIA Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA ARIA
Model 60 120 300 600 900 1200 1500 2000
Recommended batch size (kg) 25 50 120 250 400 500 600 800
ROTO MIX inline (l) 60 120 300 600 900 1,200 1,500 2,500
A (mm) 590 700   960 1,190 1,410 1,740   1,800
B (mm) 1,150  1,260  1,520 1,750 2,040 2,300 2,800
C (mm) 2,500  2,790  3,235  3,615 4,100 5,670 6,300
D (mm)  1,775  1,775  1,840  2,220  2,675  3,785 3,800
E (mm)  1,010  1,010  1,050  1,360  1,530  1,900 2,150
F (mm)  1,420  1,420  1,560  1,610  1,830  2,160 2,600

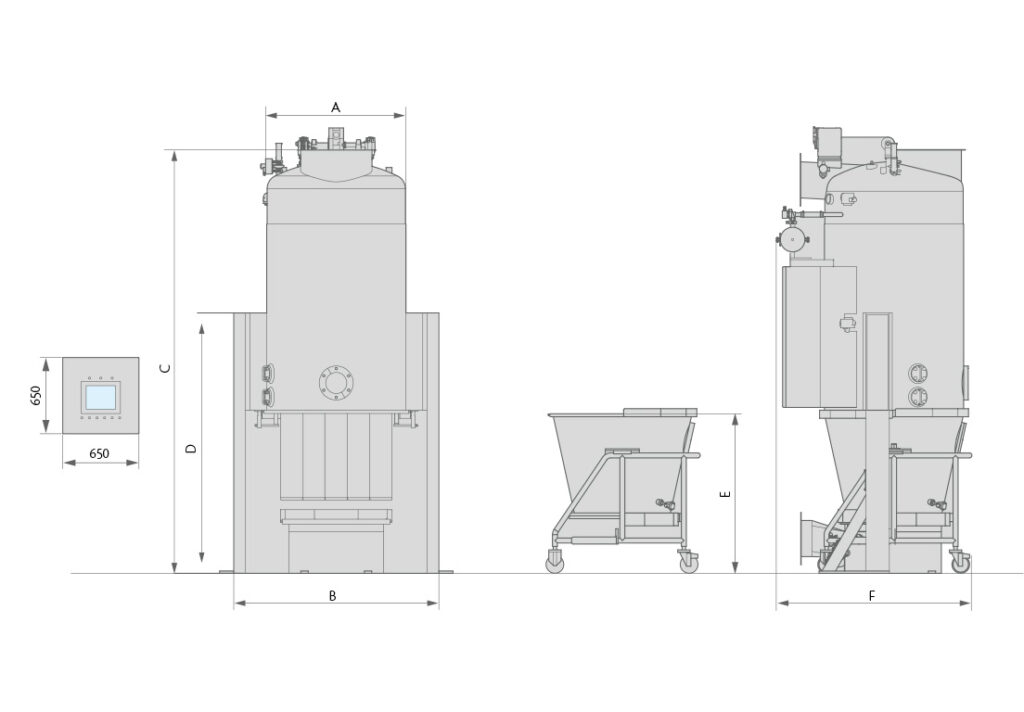

ARIA Layout

ARIA Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Bag filters
search
Star-pleated cartridges
search
Product container
search
Discharge
