A425F
Cartoning

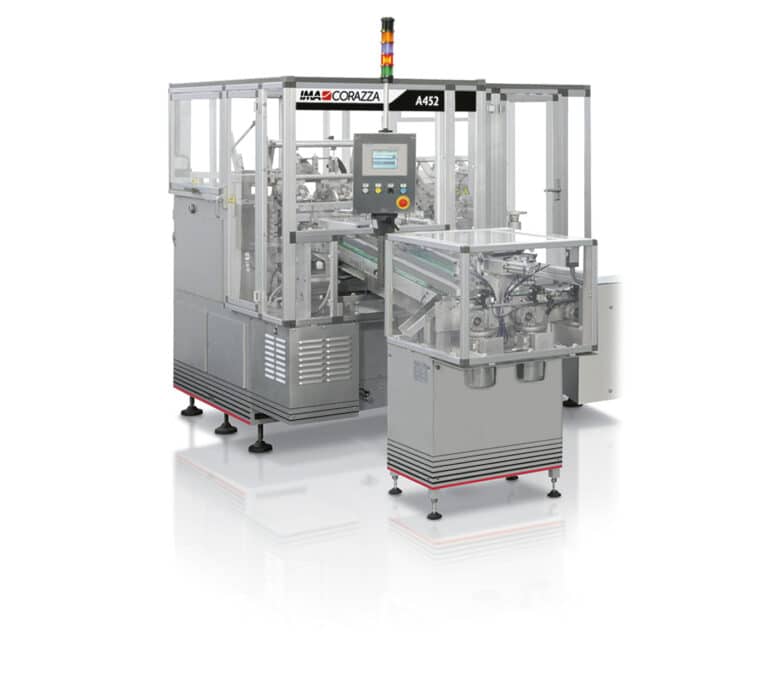

Designed for the cartoning of square and rectangular portions of processed, fresh or cream cheese, the A452F is a highly reliable, flexible solution

Designed for the cartoning of square and rectangular portions of processed, fresh or cream cheese, the A452F is a highly reliable, flexible solution

Flexible and dependable

According to customer requirements, the A452F cartoner can be supplied with various types of infeed sections, depending on the product to be handled and on the requested pack configuration.

The machine uses flat blank cartons which are formed around the product during the loading operation.

IMA Corazza
settings_applications Production Plant
IMA Corazza

A452F Highlights

1.
Converts simply to different product sizes as required
2.
Can be converted into a single-head version to handle up to 1 kg cartons
3.
Cost-saving wrap-around system to shape cartons from open flat blanks
4.
Damage-proof product handling: cartons pre-formed into an open U-shape in a vertical indexing turret

Product output options preview

keyboard_arrow_left keyboard_arrow_right
Cheese - Cartoning
  • Technical Data
  • Machine Layout
Production capacity Up to 80 boxes/min
Full load current 3P x 400 Volt – 50Hz – 8 Amp
Compressed air consumption 350 Nl/min (Min. op. pressure 6 bar)
Weight 3,700 kg Approx.

Box dimensions

A (min ÷ max)
59 ÷ 150
B (min ÷ max)
56 ÷ 75
C (min ÷ max)
22 ÷ 62

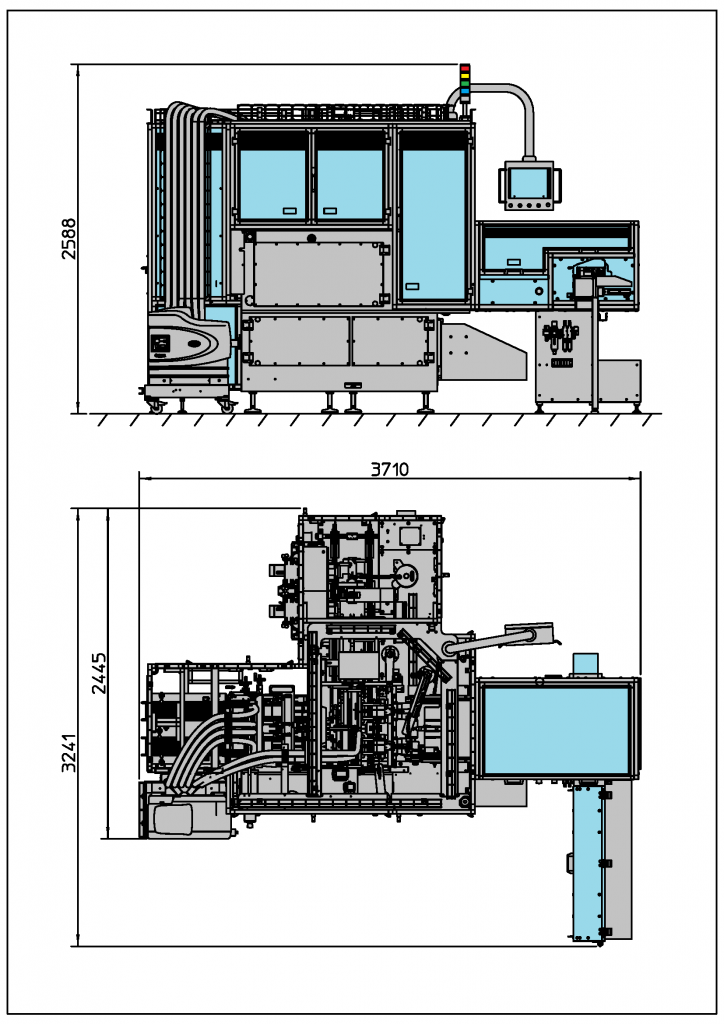

A452F Layout
