FTC570
Vertical Capsule Cartoning

Able to handle a huge variety of packaging types and shapes, FTC570 is a continuous vertical cartoner for coffee capsules in bulk format. Can be equipped with different counting, data coding, rejection and infeed solutions.

Able to handle a huge variety of packaging types and shapes, FTC570 is a continuous vertical cartoner for coffee capsules in bulk format. Can be equipped with different counting, data coding, rejection and infeed solutions.

Versatile, for enhanced productivity

Managing up to 840 capsules/min, this vertical cartoner is exceptionally versatile and requires minimal maintenance. When production needs to change fast, this is the ideal solution suited to different infeed groups.

nature_people

Sustainability



The machine motorization is handled with the aim to avoid power waste. Kinetic energy generated during braking is shared and absorbed by other modules. The FTC570 can handle capsules made of compostable or recyclable material. Carton material can be recyclable or recycled.
IMA Coffee Packaging
settings_applications Production Plant
IMA Coffee Packaging

FTC570 Highlights

1.
Processing capability: different capsule sizes and a variety of carton pack shapes.
2.
Features a dedicated feeding system for coffee capsules.
3.
Capsules filled into cartons by means of hoppers; accurate product counting ensured.
4.
Rotating drum fitted with suction cups to pick and place the cartons into the buckets.
5.
Features a flip-top upper closure unit and is equipped with a gluing control system and bottom closure gluing unit.
  • Technical Data
  • Machine Layout
TECHNICAL DATA FTC570
Production range   Min. Max.
A 60 110
B 60 110
C 100 200
D 35 55
E 25 50
Production Up to 200 ppm
Installed power 14 kW
Operating pressure 6 bar
Maximum air consumption 350 Nl/min
Weight 3,320 Kg

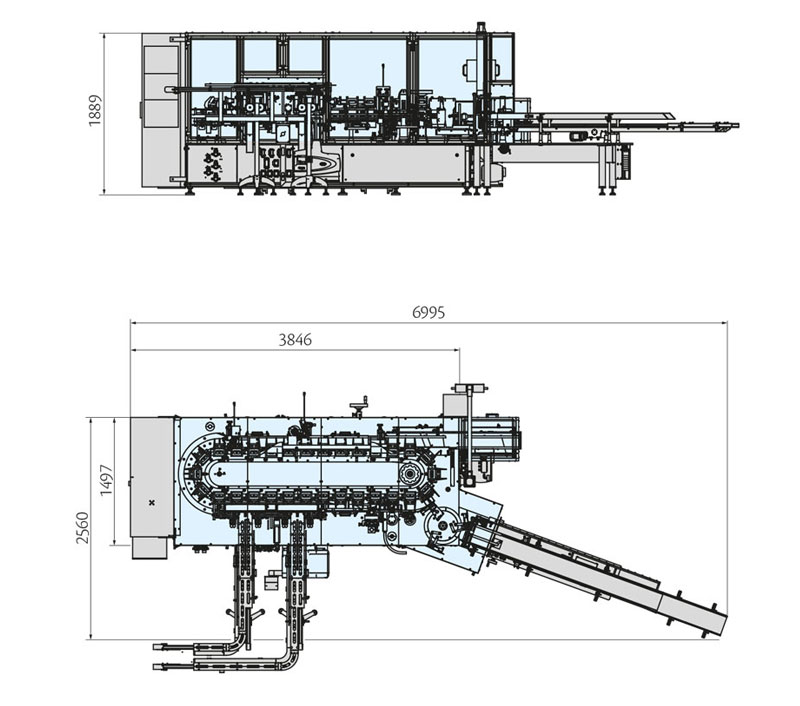

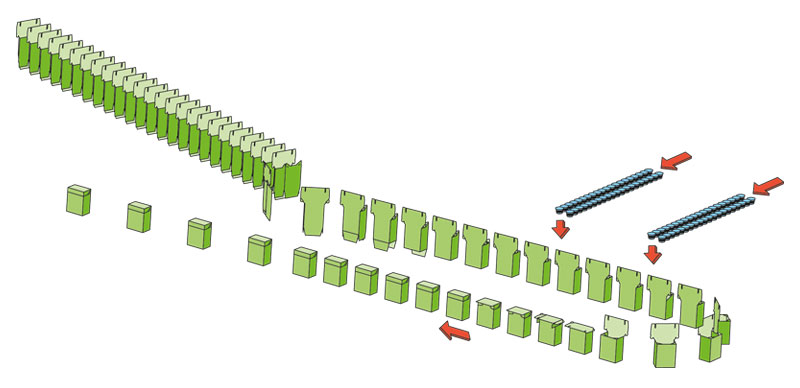

FTC570 Layout FTC570 Layout

FTC570 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Carton rotating picking turret
search
Bottom closure
search
Top closure
search
Side flaps folding
search
General overview
