FTB608-C
Capsule cartoning

The FTB608-C is a cartoning machine for oriented capsules up to 40 boxes/minute. Starting from flat blank carton, there is the possibility to pack in a single box multi product flavors with a dedicated feeding system design.

The FTB608-C is a cartoning machine for oriented capsules up to 40 boxes/minute. Starting from flat blank carton, there is the possibility to pack in a single box multi product flavors with a dedicated feeding system design.

Cartoning machine for oriented capsules

The FTB608-C is a scaled version of the FTB577-C machine. It is equipped with a single forming head with positive display management. Starting from flat blank carton, there is the possibility to pack in a single box multi product flavors with a dedicated feeding system design. A single flat blank magazine is available on the machine.

As a turnkey solution, in line with the 590 capsule filler, the FTB608-C offers countless plus points: compact footprint, user-friendly operator interface, high blanks capacity quick size changeover and requires minimal maintenance.

With fully servo-driven movement, the FTB608-C ensures excellent production efficiency and extreme flexibility regarding the product layer configuration.

A key feature regard the minimal use of void space, enabling highly compact packaging solutions to save space and cut costs.

The FTB608-C handles American and Espresso coffee capsules, tea and soluble beverages in general.

IMA Coffee Packaging
settings_applications Production Plant
IMA Coffee Packaging

FTB608-C Highlights

1.
Compact footprint
2.
High blanks capacity
3.
Quick size changeover
4.
Excellent production efficiency and extreme flexibility regarding the product layer configuration.
5.
Minimal use of void space, enabling highly compact packaging solutions to save space and cut costs.
6.
It handles American and Espresso coffee capsules, tea and soluble beverages in general.
  • Technical Data
  • Machine Layout
Product range     MIN MAX
L 100 200
W 50 200
H 30 150
Production Over 40 ppm
Average power consumption 10 kW
Operating pressure 6 bar
Maximum air consumption 400 Nl/min
Weight 2800 kg

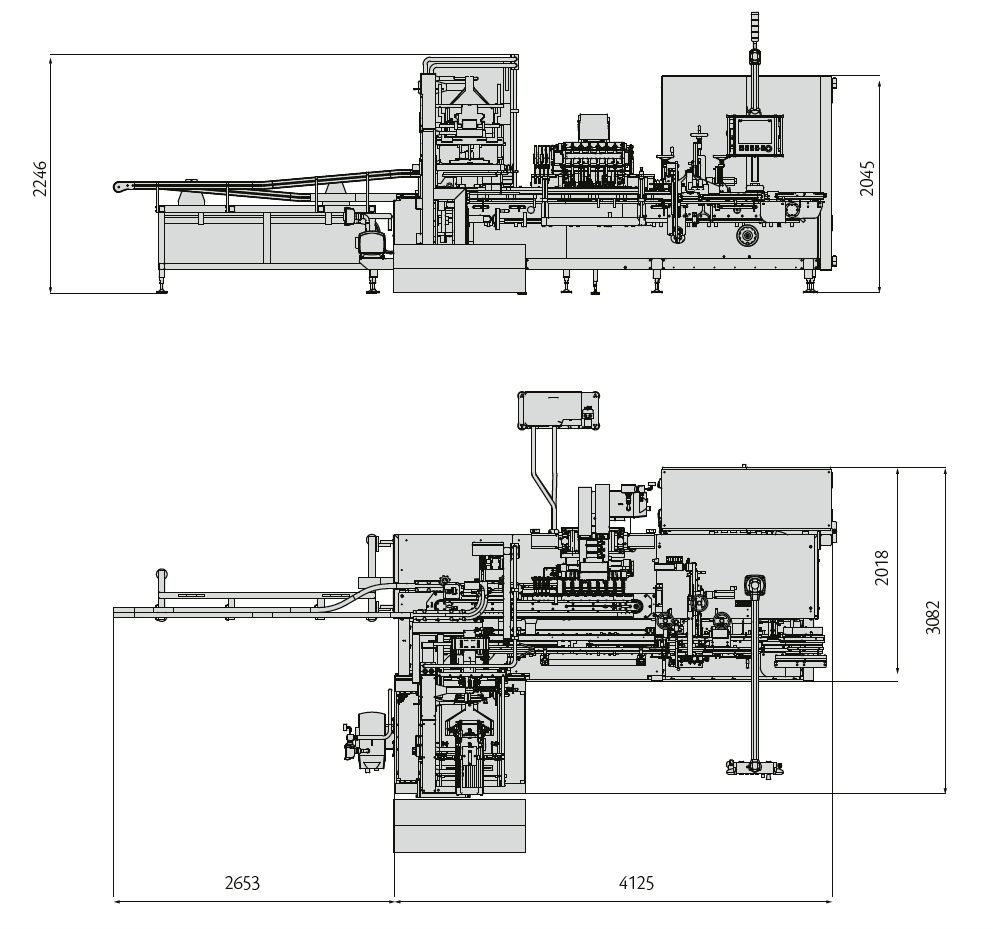

FTB608-C Layout

FTB608-C Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Glue units for carton forming
search
Carton forming unit
search
Capsules pick&place
