ERMETIKA
Pouch filling

Ermetika is a high-speed, continuous motion rotary machine assembling, filling and sealing spouts and premade pouches in a wide variety of shapes and sizes. High efficiency and premium quality results for countless products typical of the food and dairy market

Ermetika is a high-speed, continuous motion rotary machine assembling, filling and sealing spouts and premade pouches in a wide variety of shapes and sizes. High efficiency and premium quality results for countless products typical of the food and dairy market

100% Filling, 0% Leaking.

With 4 different models processing at different speeds, all handling a wide range of pouch sizes, Ermetika is a highly flexible solution with a reduced footprint.

Adapts easily in order to handle film, spouts and caps from different suppliers, and uses the “filling through the spout” technique (spouts are sealed to the pouch before filling) to ensure 100% pouch filling is achieved, thus generating significant savings on materials.

Fitted with the leaking test system (patent pending), Ermetika is the only machine on the market able to check the resistance of the pouch seal. Extended shelf life and aseptic versions are available.

IMA Fillshape
settings_applications Production Plant
IMA Fillshape

Ermetika Highlights

1.
“Filling through the spout” to exploit maximum pouch capacity and save on materials.
2.
Leaking test system: less than 1:30,000 leak ratio compared to 1:10,000 of other available technologies.
3.
High hygienic standards thanks to the frameless design and separation between pouch making and filling areas.
4.
Extended and continuous welding time
5.
Compact footprint: a reduced layout especially at medium and high speed
  • Technical Data
  • Machine Layout
TECHNICAL DATA ERMETIKA
machine model Stations Pouch width (mm) Pouch height Pouch per minute
Magazine Sealing Filling Capping

Ermetika 120

6 24 12 6 65 – 120 80 – 220 120
Eremetika 240 8 32 16 8 65 – 120 80 – 220 240
Ermetika 360 10 40 20 10 65 – 120 80 – 220 360
Ermetika 480 16 48 32 24 65 – 120 80 – 220 480

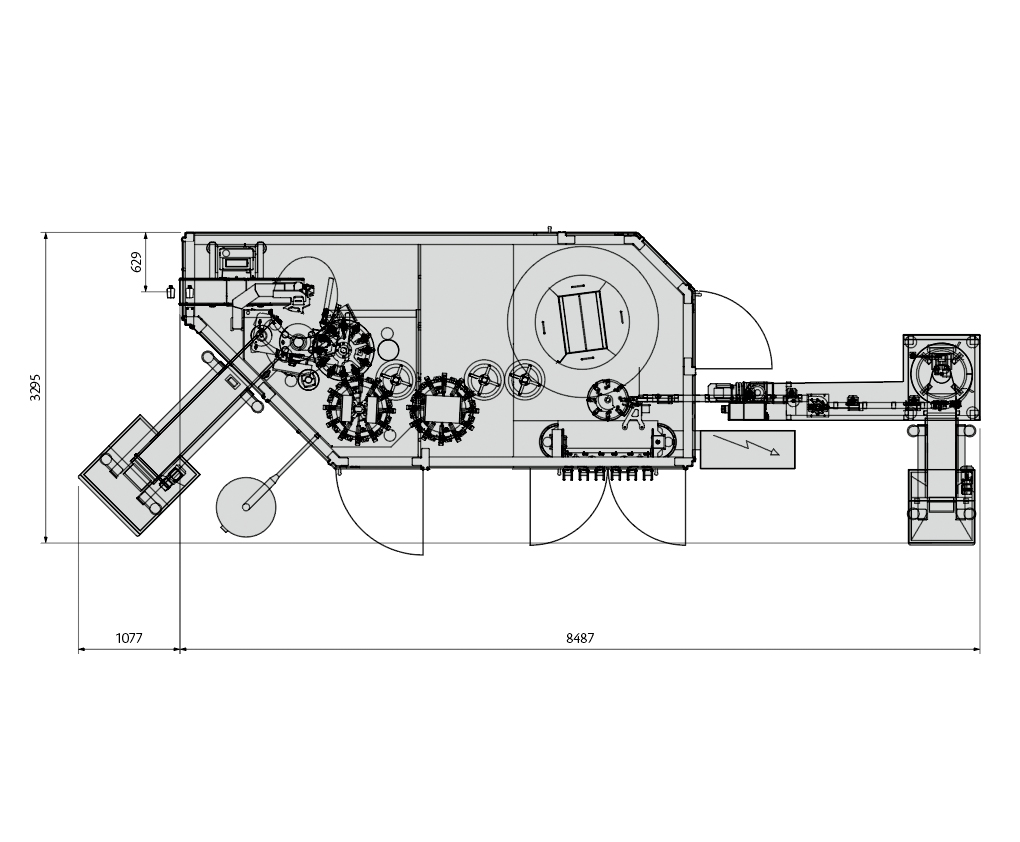

Ermetika Layout

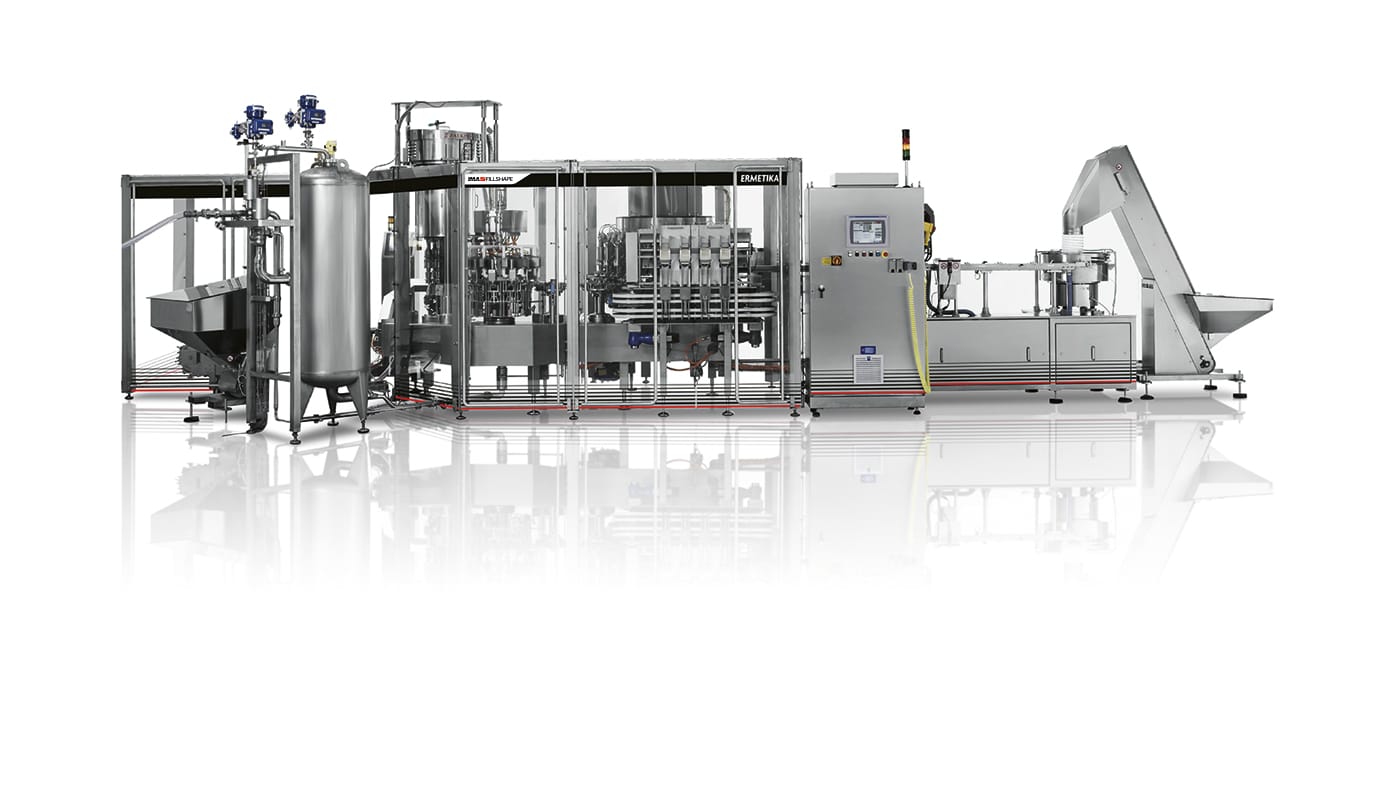

Ermetika Gallery
