C21
Overhauled Tea bag packaging

Available as overhauled equipment, the C21 produces non-heatsealable, double-chamber bags with string, folded tag and aluminium staple. Reliable and efficient, the C21 is a highly automated, compact machine which can be completed with a host of optional units.

Available as overhauled equipment, the C21 produces non-heatsealable, double-chamber bags with string, folded tag and aluminium staple. Reliable and efficient, the C21 is a highly automated, compact machine which can be completed with a host of optional units.

Only original parts assure original performance.

IMA provides customers with a highly qualified service centre which performs overhaul and maintenance on a selection of  teabag packaging machines in order to provide a solution for companies in search of high-performance equipment at competitive prices.

Overhaul is carried out by Revisioni Industriali, an IMA-managed company, using exclusively original parts. This ensures full compatibility and integration with each machine and guarantees the same performance levels as for new equipment. Moreover, Revisioni Industriali is the only company able to replace old machine parts and groups with new and updated ones by availing themselves of technical improvements developed by IMA.

Customers can choose between a full overhaul and a partial revision, deciding on whether they require an immediate replacement or await revision of the existing machine.

  • An entire overhaul carried out on our premises takes up to 3-4 months.
  • A partial revision on our premises takes between 2 and 3 months. When carried out directly at the customer’s premises by skilled technicians, this option avoids shipping costs and minimises production losses.

A third option enables customers to purchase a fully overhauled machine in exchange for their old one with a buy-back agreement. This ensures minimal production loss.

C21 Overhauling Procedure

  • Complete disassembly and washing of all machine parts.
  • Mechanical parts control, external heat-treatment, re-painting of the parts.
  • Assembly of the machine and replacement of any worn parts with original IMA spares.
  • Updating of the machine on the basis of IMA’s latest technological developments.
  • Installation of a new updated electrical panel, re-wiring including hardware and software upgrade.
  • Electrical system overhaul and installation of the new electrical panel including all recent devices applied by IMA to new machines.
  • Final testing of the machine using packaging materials supplied by the end customer.
IMA R.I.
settings_applications Production Plant
IMA R.I.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C21 RI
Machine speed (strokes/minute)

With naked bag and crimped outer envelope up to 180

With heatsealed outer envelope up to 150

Tea bag capacity Up to aproximately 4.0 grams
Filter bag maximum volume 14.26 cubic centimetres
Power required Total installed power 6.0 kW
N.b. Power consumption depends on the thermic groups fitted in the machine
Compressed air (without outer envelope)

Exercise pressure: 6 bar – Consumption: 60 Nl/min.

Compressed air inlet Ø 3/8 gas

Lubrification Is provided with an automatic and centralized lubrication system
Machine net weight

With cartoning attachment for pre-glued cartons: max. 2,750 Kg

With hand removal: max 2,350 Kg

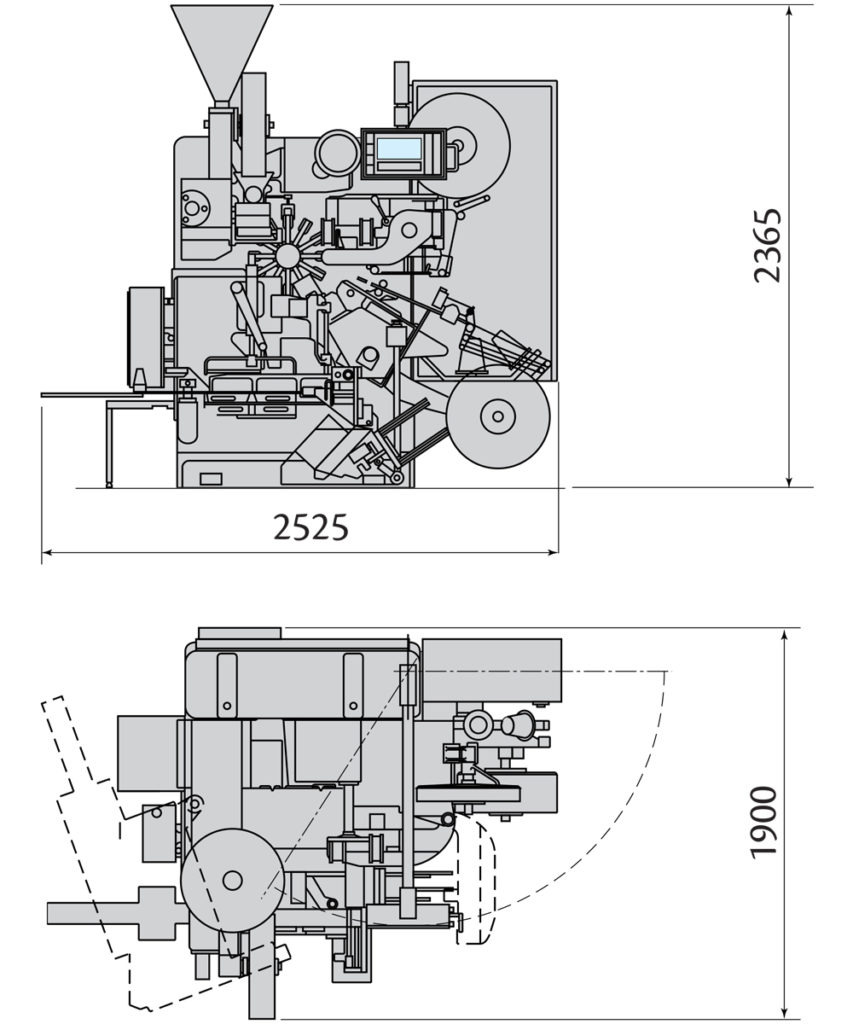

C21 Overhauled Layout

C21 Overhauled Gallery
