C2000
Tea bag packaging

The C2000 is a high-speed solution for heatsealed, double-chamber bags with string and tag and without aluminium staple. Handling naked bags and crimped envelopes, the machine enables maximum flexibility through a vast choice of carton types.

The C2000 is a high-speed solution for heatsealed, double-chamber bags with string and tag and without aluminium staple. Handling naked bags and crimped envelopes, the machine enables maximum flexibility through a vast choice of carton types.

The efficiency you deserve

The C2000 is ideal for high-capacity, high-efficiency production requirements for customers wanting a reliable solution for heatsealable, double-chamber bags without metallic staples. A small adhesive paper element is used to fix the tag and the cotton thread to the bag.

Equipped with a fully automatic splicing system for all packaging materials, the C2000 ensures user-friendliness and production efficiency. If production is not limited to black tea, non free-flowing products can be handled by a special feeder.

A variety of carton styles and sizes are available thanks to the flexibility of the cartoning unit which uses flat blanks.

IMA Tea & Herbs
settings_applications Production Plant
IMA Tea & Herbs

C2000 Highlights

1.
High production speed: up to 450 bags/minute.
2.
Packaging material automatic splicing: no processing speed reduction, greater efficiency, one operator can manage up to 3 machines.
3.
Adhesive paper fixes tag and thread to bag to avoid use of aluminium staples.
4.
Packaging versatility: countless carton styles and sizes can be obtained from flat blanks.
5.
Reduced maintenance requirements and high production efficiency.
6.
Dedicated product control devices monitor product quality and packaging reliability.
7.
Integrated PC for working cycle logic and quality control.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C2000
Machine speed (Bags/minute) Up to 450
Tea bag capacity Up to aproximately 4.0 grams
Filter bag maximum volume 14.3 cubic centimeters
Power required Total installed power: 18 kW
N.b. Power consumption depends on the thermic groups fitted in the machine
Compressed air (without outer envelope)

Duty pressure: 6 bar

Consumption: max 500 Nl/min.

Air supply connection 1/2 b.p.s.

Compressed air (with outer envelope)

Duty pressure: 6 bar

Consumption: max 400 Nl/min.

Air supply connection 1/2 b.p.s.

Machine net weight Max. 6,300 Kg

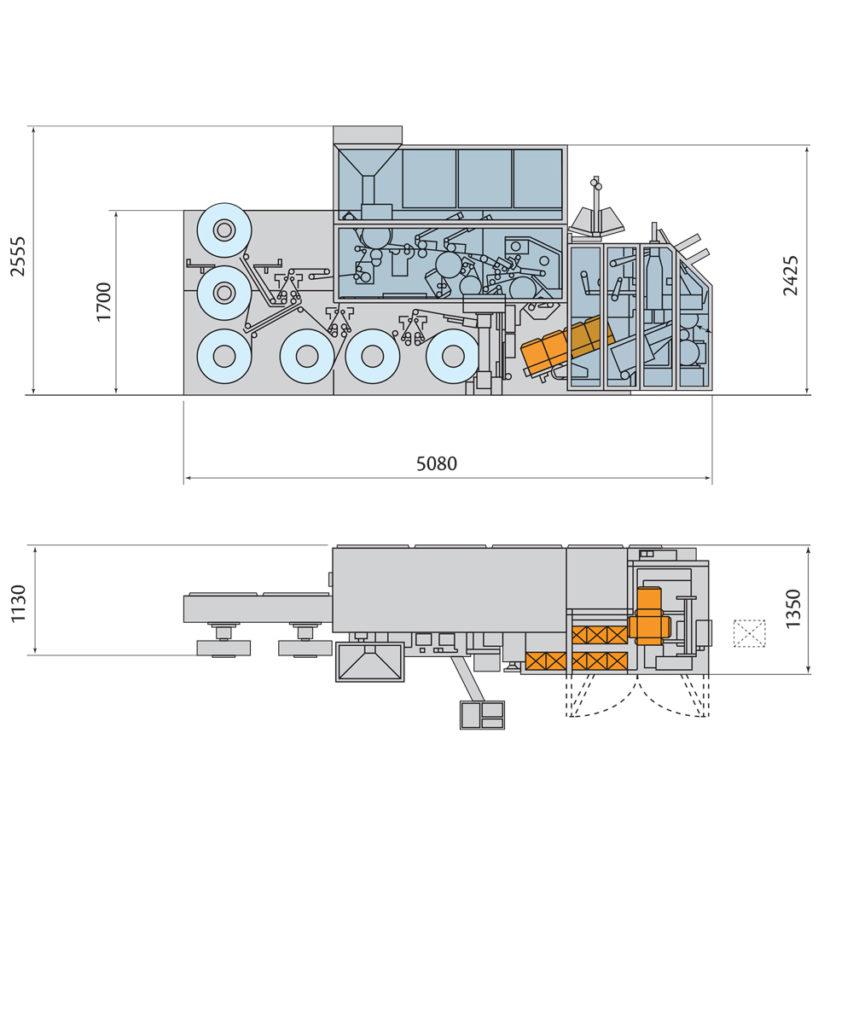

C2000 Layout

C2000 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Tea bag packaging
search
Filter paper reel automatic splicing
search
Outer envelope paper reel automatic splicing
search
Tag paper reel automatic splicing
