A100
Overwrapping

Designed and built to automatically wrap cartons, trays, bundles and other parallelepiped products, the A100 uses cellophane, PVC, PP and all reel-fed, heat-sealable film types, and with its entirely mechanical movements, enjoys minimal need for maintenance.

Designed and built to automatically wrap cartons, trays, bundles and other parallelepiped products, the A100 uses cellophane, PVC, PP and all reel-fed, heat-sealable film types, and with its entirely mechanical movements, enjoys minimal need for maintenance.

Innovative, high-performance overwrapping to cope with difficult or thin films.

The A100 is an automatic, high-performance overwrapper which implements an innovative film transport system designed to cope with difficult and thin films.

Further to its consolidated reliability, the A100 offers excellent accessibility and simple changeover procedures to save time and increase productivity.

Running at 100 cycles/min., the A100 can benefit from a host of optional groups to respond to specific needs and enhance performance.

IMA BFB
settings_applications Production Plant
IMA BFB

A100 Highlights

1.
Several different lateral sealing unit.
2.
Film unwinding by means of driven drums to move film under guillotine knife.
3.
Fully servo driven machine.
4.
Tear tape unit available.
5.
Film printing unit available.
6.
Tool-free size change over with digital indicator.
  • Technical Data
  • Machine Layout
TECHNICAL DATA A 100

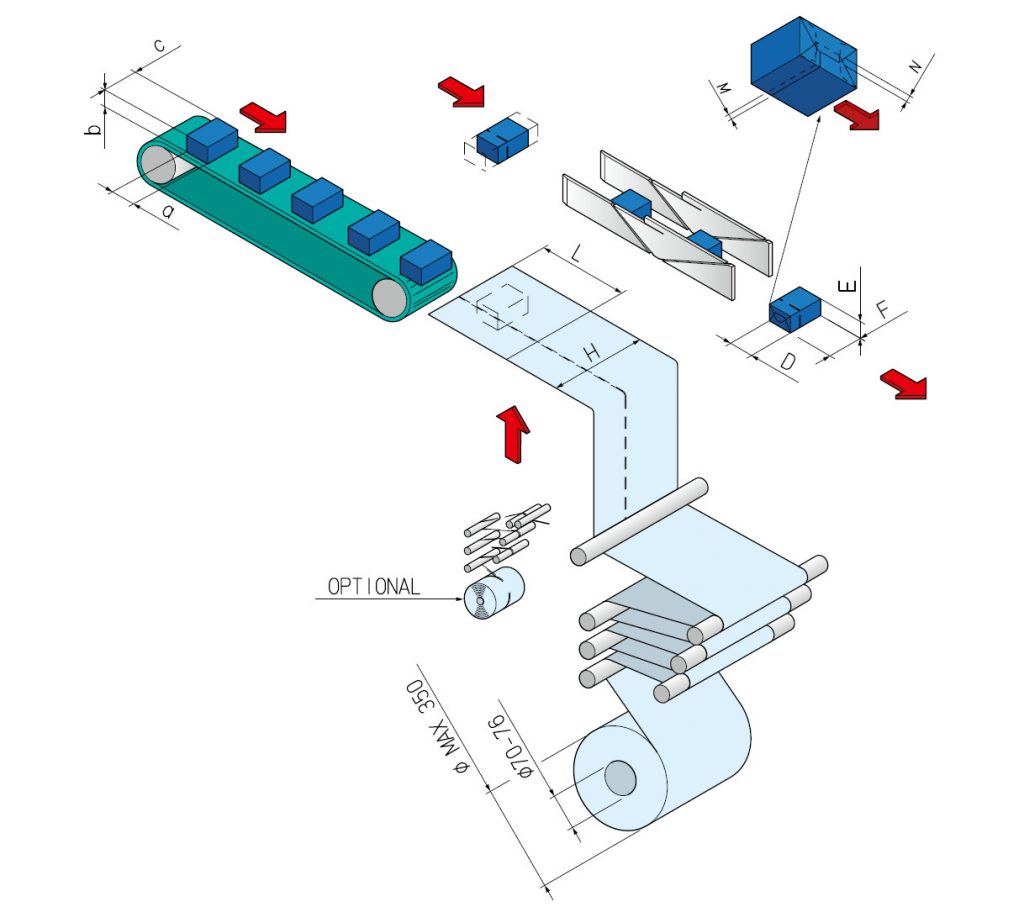

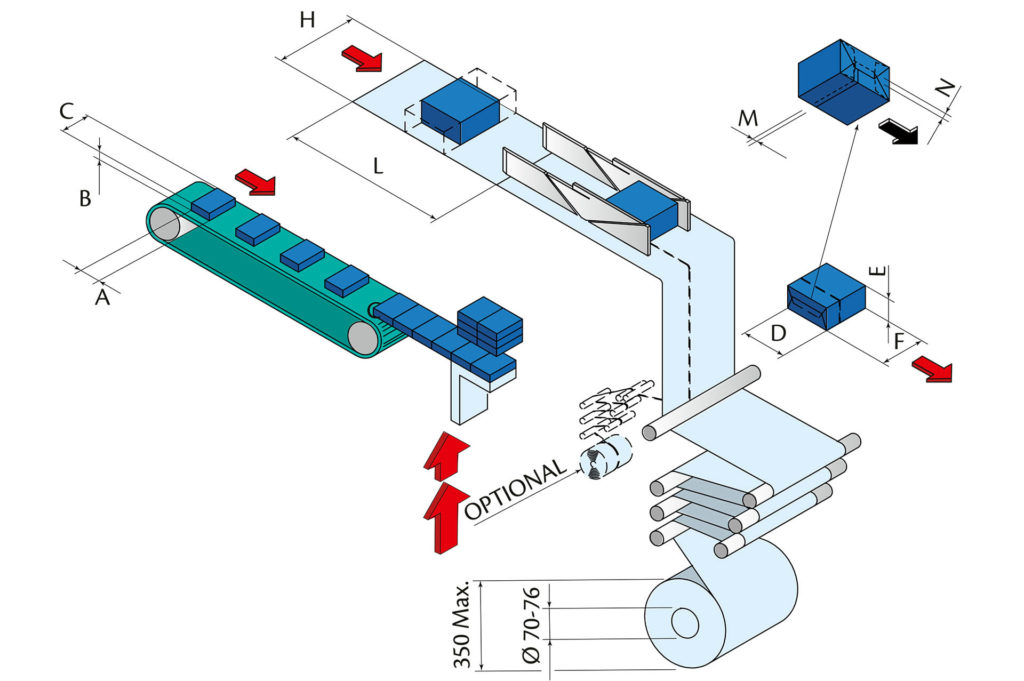

Product dimensions A B C D E F H L
Min. 30 25 60 30 25 60 100 120
Max. 220 120 280 220 120 280 240 700
Production capacity Up to 100 cycles/minute
Compressed air 5/7 bar
Installed power 6.7 kW
Air consumption 75 Nl/min.
Gross weight 1,800 Kg

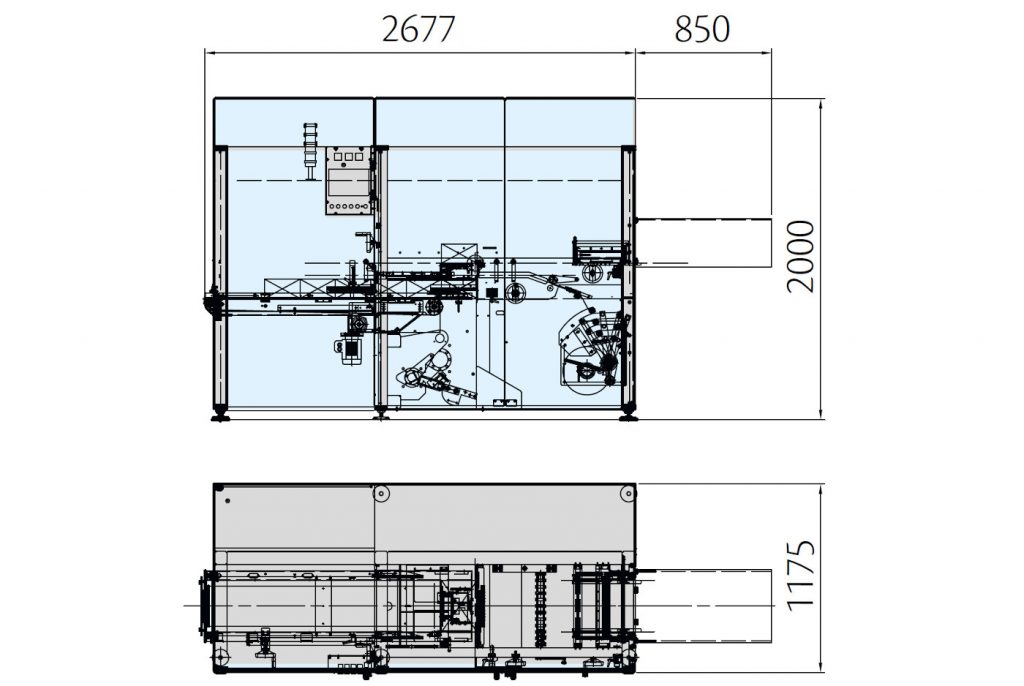

A100 Layout A100 Layout

A100 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product infeed
search
General overview
search
Film forming unit
search
Product outfeed
